Bin, Instrument Panel: Installation

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
GC0086799Courtesy of CHRYSLER GROUP, LLC
  1. Partial install the storage bin and connect the storage bin light electrical connector.
  2. Engage the storage bin retainer clips and fully seat the storage bin (2) to the instrument panel (3).
  3. Close storage bin door (1).

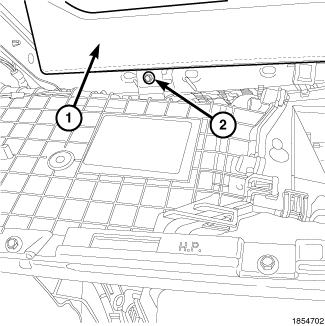

    GC0086798Courtesy of CHRYSLER GROUP, LLC
  4. Through the glove box opening install the storage bin fastener (2) at rear of storage bin (1).
  5. Install the glove box to the instrument panel. Refer to GLOVE BOX, INSTRUMENT PANEL, INSTALLATION .
