Fender, Front: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
GC0088983Courtesy of CHRYSLER GROUP, LLC

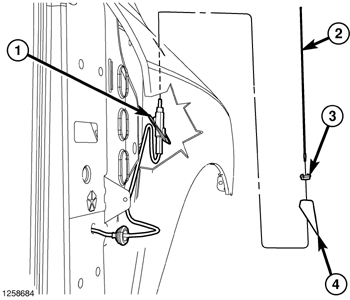

  1. Remove the radio antenna if necessary. Refer to MAST, ANTENNA, REMOVAL .
    GC0088984Courtesy of CHRYSLER GROUP, LLC
  2. Remove the headlamp unit. Refer to UNIT, FRONT LAMP, REMOVAL .

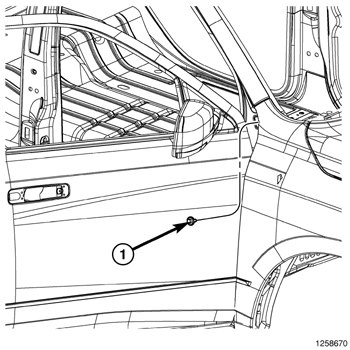

  3. Open the door and remove the rear upper screw (1).
    GC0088985Courtesy of CHRYSLER GROUP, LLC

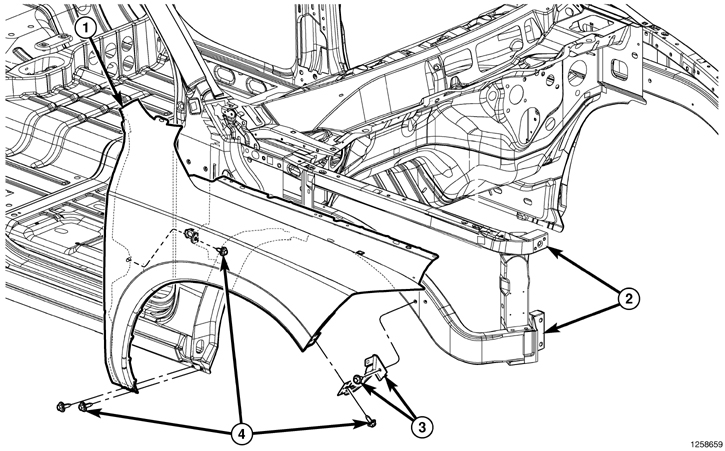

  4. Remove the front wheel opening molding. Refer to REMOVAL  .
  5. Remove the wheelhouse splash shield. Refer to REMOVAL
  6. Remove the support screws (4).
    GC0088986Courtesy of CHRYSLER GROUP, LLC
  7. Remove the battery tray (depending on fender being serviced) Refer to TRAY, BATTERY, REMOVAL .

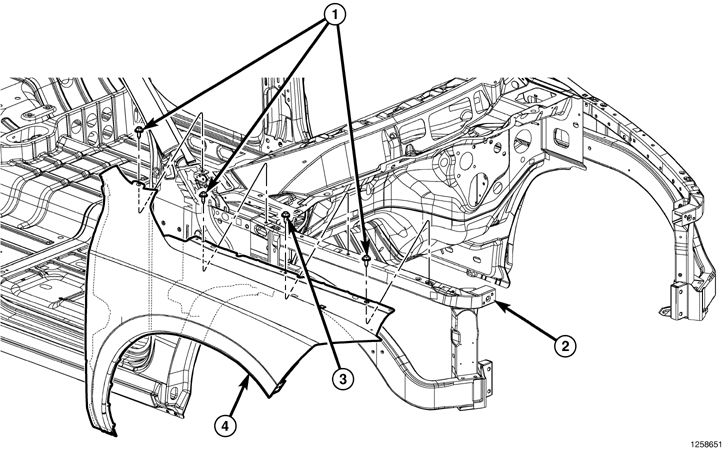

  8. Remove the bolts (1) and on the right side (3) and remove the fender (4).
