Mast, Antenna: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
GC0089061Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Remove the passenger side cowl trim panel (1). Refer to PANEL, COWL TRIM, REMOVAL .
    GC0143941Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the antenna mast connector (2) from the instrument panel antenna connector (1).
    GC0143942Courtesy of CHRYSLER GROUP, LLC
  4. Securely tie a suitable length of cord or twine to the antenna half of the coaxial cable connector. This cord will be used to pull the cable back into position during installation.
  5. Remove the antenna mast (1).

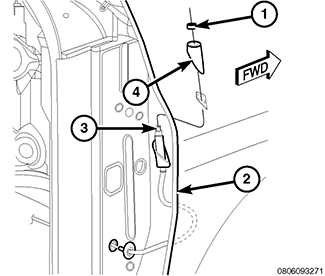

    GC0173525Courtesy of CHRYSLER GROUP, LLC
  6. Remove the antenna cap nut (1) using the (special tool #C-4816, Socket, Antenna).
  7. Remove the antenna adapter (4).
  8. With the passenger door open, pull the antenna body assembly (3) out through the opening between the fender and body.
