DECKLID/Hatch/Liftgate/Tailgate/Swing Gate: Tailgate: Installation
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

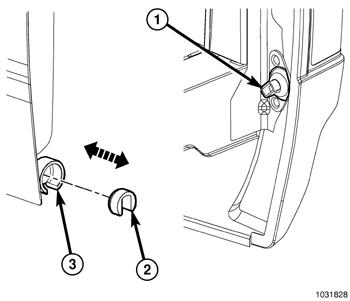

- If removed, install the bushing (2) into each tailgate pivot pocket (3).

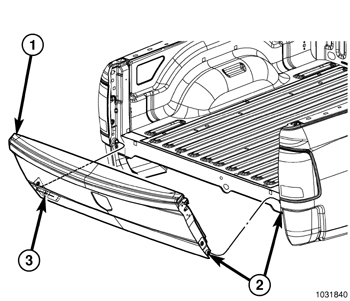

- Position the tailgate (1) onto the left side tailgate pivot pin (3).
- Partially close the tailgate so that the notch in the right side tailgate pivot pocket (2) aligns with the flats on the right side tailgate pivot pin.
- Lower the tailgate onto the right side tailgate pivot pin.
- If equipped, connect the electrical connectors.
- Connect the tailgate check cables (3) to the cable bolts (2) located below each tailgate striker (1). Refer to CABLE, TAILGATE, INSTALLATION .
