Cooler, Power Steering: Removal: Diesel

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Remove the grille. Refer to GRILLE, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

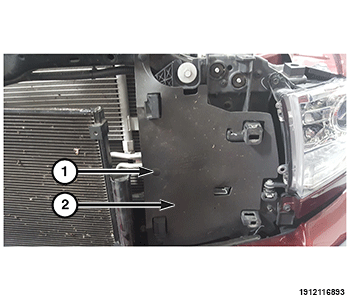

Remove the three push-in fasteners (1) and position aside the right air deflector (2).

Courtesy of CHRYSLER GROUP, LLC

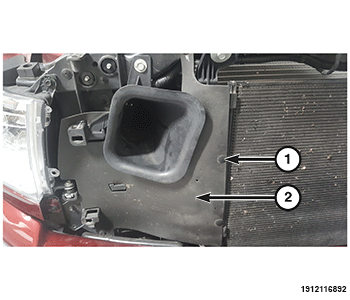

Remove the three push-in fasteners (1) and position aside the left side air deflector (2)

Courtesy of CHRYSLER GROUP, LLC

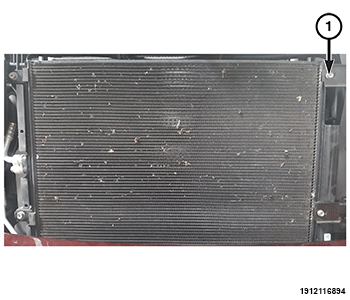

Remove the four A/C Condenser Bolts (1).

Courtesy of CHRYSLER GROUP, LLC

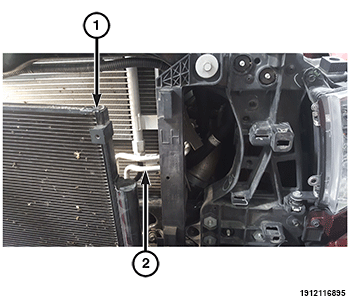

Position the A/C condenser (1) forward away from the power steering cooler (2).

Courtesy of CHRYSLER GROUP, LLC

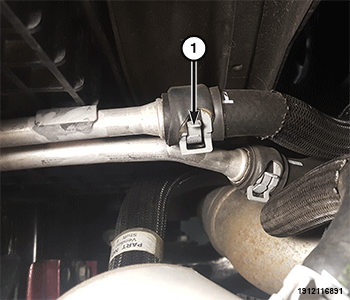

Compress both power steering hose clamps (1) and disconnect both power steering hoses from the cooler.

Courtesy of CHRYSLER GROUP, LLC

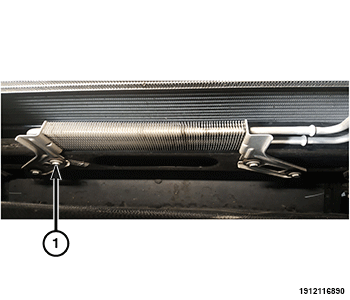

Remove the four power steering cooler mounting bracket bolts (1).
Remove the power steering cooler.
