Section 1564 (Body - Interior & Exterior - 2500 Hd): Exterior: Grille: Removal
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

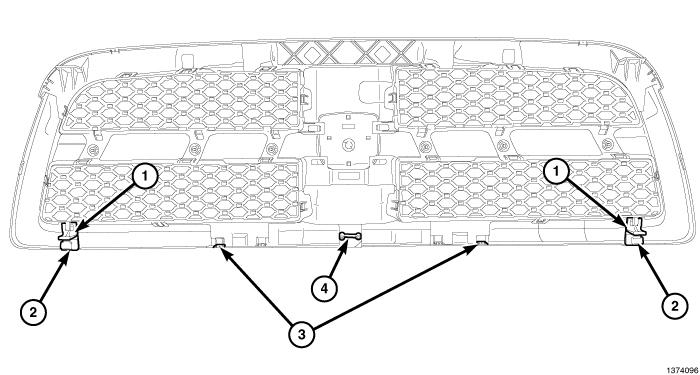

- Remove the four push pins (1).
- Remove the two plastic rivets (2) and remove the upper radiator seal.
- Remove the four upper grille support bolts (1).
- Using trim stick (special tool #C-4755, Trim Stick) or equivalent, separate the two lower spring clips (2).
- Release the two lower hooks (1) and remove the grille.
