Diagnostic Test

WARNING: This page is about a different car, the 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Possible Causes
(A910/A118) FUSED B(+) CIRCUITS OPEN OR SHORTED
(Z915) GROUND CIRCUITS OPEN
(F202) IGNITION RUN/START CONTROL OUTPUT CIRCUIT OPEN OR SHORTED
(F1) IGNITION SWITCH OUTPUT (OFF-RUN-START) CIRCUIT OPEN OR SHORTED
(D65) CAN C BUS (+) CIRCUIT OPEN
(D64) CAN C BUS (-) CIRCUIT OPEN
POWERTRAIN CONTROL MODULE (PCM)

TEST FOR INTERMITTENT CONDITION
NOTE:
Check for any TSB(s) related to the condition. If a TSB applies, perform the procedure outlined in the TSB before continuing.
1. Turn the ignition on.
  NOTE:
  Make sure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.
2. Using the scan tool, select ECU View.
  NOTE:
  A red "X" will be next to the module that is not communicating, indicating that the module is not active on the Bus network. A green check indicates that the module is active on the Bus network.

  NOTE:
  Check the TIPM for any active CAN C hardware DTCs, perform DTC before proceeding.

  Does the scan tool display a red "X" next to the module?

  Yes
  - Go To 2.
  No
  - Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.
(A910/A118) FUSED B(+) CIRCUITS OPEN OR SHORTED

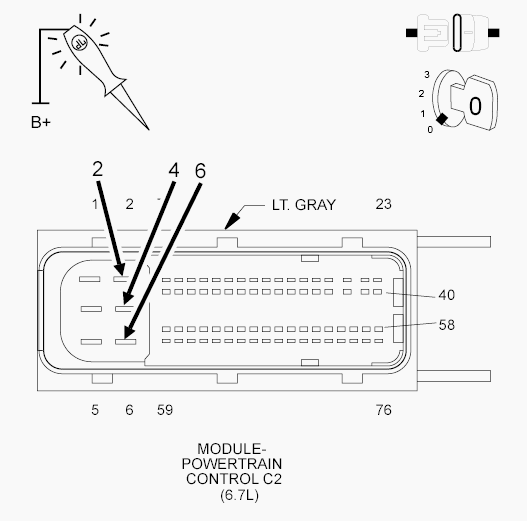

Fig 1: Using 12-Volt Test Light To Check Fused B (+) Circuits
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the PCM C2 harness connector.
3. Using a 12-volt test light connected to ground, check the (A910/A118) Fused B(+) circuits.
  Does the test light illuminate brightly for each circuit?

  Yes
  - Go To 3.
  No
  - Repair the open or short in the (A910/A118) Fused B(+) circuit.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
(Z915) GROUND CIRCUITS OPEN

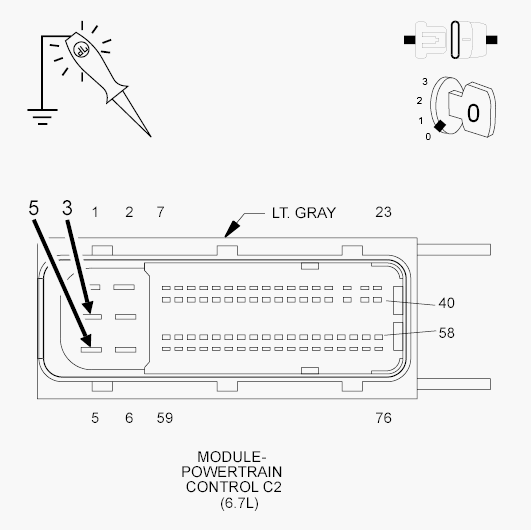

Fig 2: Using 12-Volt Test Light To Check Ground Circuits
Courtesy of CHRYSLER LLC
1. Using a 12-volt test light connected to 12-volts, check the (Z915) Ground circuits.
  Does the test light illuminate brightly for each circuit?

  Yes
  - Go To 4.
  No
  - Repair the open in the (Z915) Ground circuit.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
(F202) IGNITION RUN/START CONTROL OUTPUT CIRCUIT OPEN OR SHORTED

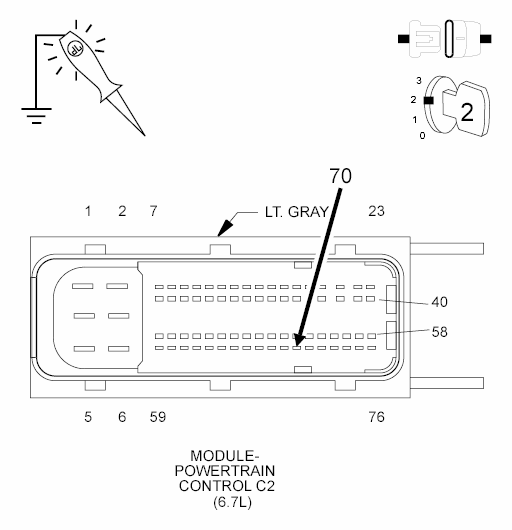

Fig 3: Using 12-Volt Test Light To Check Ignition Run/Start Control Output Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition on.
2. Using a 12-volt test light connected to ground, check the (F202) Ignition Run/Start Control Output circuit.
  Does the test light illuminate brightly?

  Yes
  - Go To 5.
  No
  - Repair the open or short in the (F202) Ignition Run/Start Control Output circuit.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
(F1) IGNITION SWITCH OUTPUT (OFF-RUN-START) CIRCUIT OPEN OR SHORTED

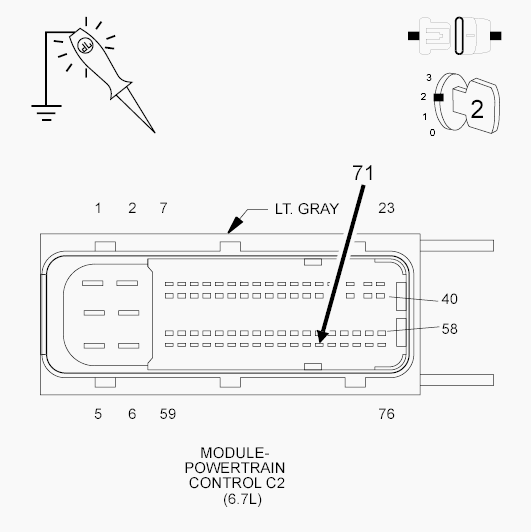

Fig 4: Using 12-Volt Test Light To Check Ignition Switch Output (Off-Run-Start) Circuit
Courtesy of CHRYSLER LLC
1. Using a 12-volt test light connected to ground, check the (F1) Ignition Switch Output (Off-Run-Start) circuit.
  Does the test light illuminate brightly?

  Yes
  - Go To 6.
  No
  - Repair the open or short in the (F1) Ignition Switch Output (Off-Run-Start) circuit.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
(D65) CAN C BUS (+) CIRCUIT OPEN

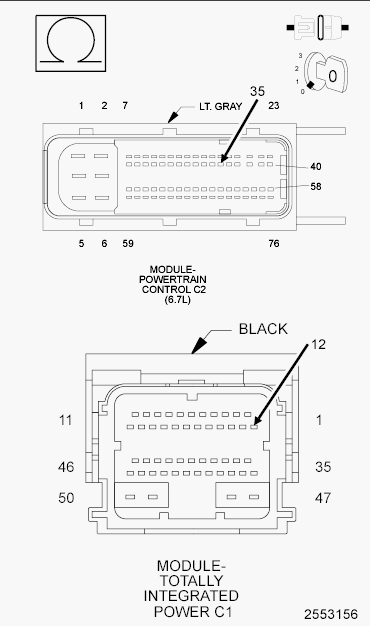

Fig 5: Measuring Resistance Of CAN C Bus (+) Circuit Between TIPM C1 Harness Connector & PCM C2 Harness Connector
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the TIPM C1 harness connector.
3. Measure the resistance of the (D65) CAN C Bus (+) circuit between the TIPM C1 harness connector and the PCM C2 harness connector.
  Is resistance below 5.0 Ohms?

  Yes
  - Go To 7.
  No
  - Repair the open in the (D65) CAN C Bus (+) circuit.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
(D64) CAN C BUS (-) CIRCUIT OPEN

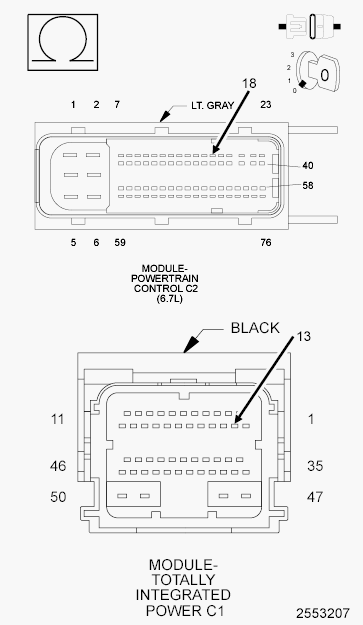

Fig 6: Measuring Resistance Of CAN C Bus (-) Circuit Between TIPM C1 Harness Connector & PCM C2 Harness Connector
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (D64) CAN C Bus (-) circuit between the TIPM C1 harness connector and the PCM C2 harness connector.
  Is resistance below 5.0 Ohms?

  Yes
  - Replace the PCM in accordance with the Service Information.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
  No
  - Repair the open in the (D64) CAN C Bus (-) circuit.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to POWERTRAIN VERIFICATION TEST - 6.7L .
