No Response From Orc (Occupant Restraint Controller): Notes

WARNING: This page is about a different car, the 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

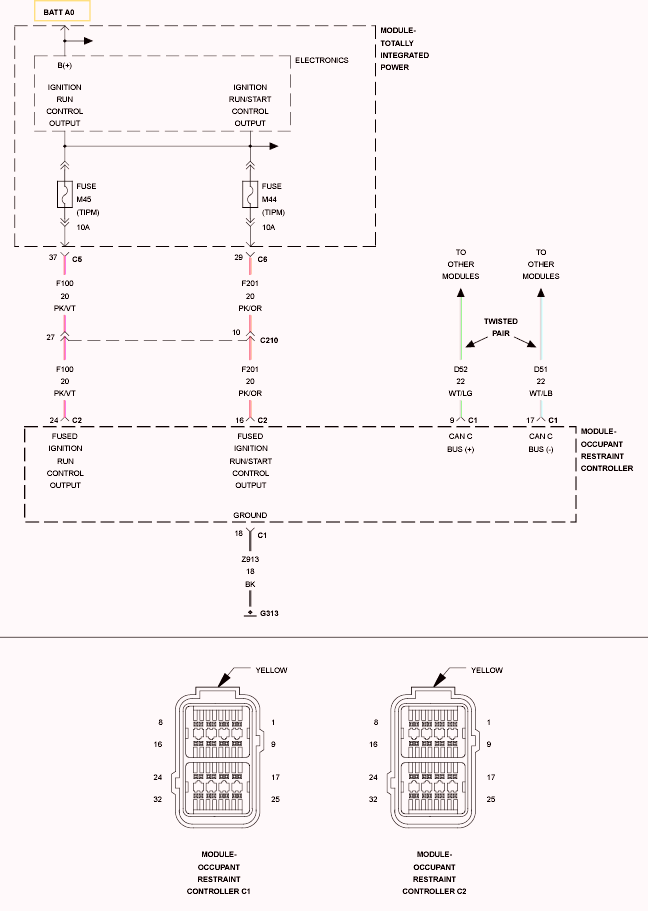

Fig 1: ORC (Occupant Restraint Controller) Wiring Diagram

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
