No Response From DTCM (Drivetrain Control Module): Notes

WARNING: This page is about a different car, the 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

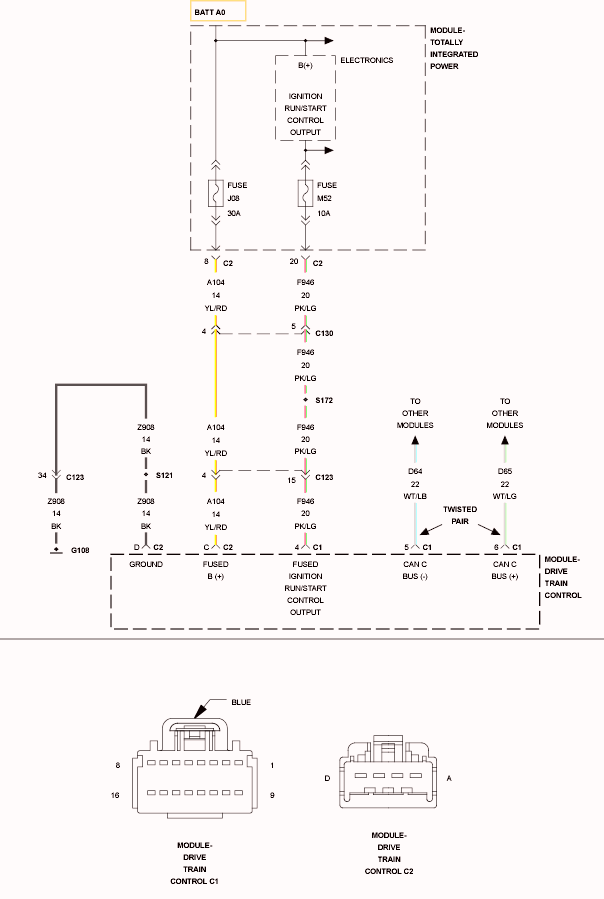

Fig 1: DTCM (Drivetrain Control Module) Wiring Diagram
GC0091308Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
