Diagnostic Test

WARNING: This page is about a different car, the 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

CHECK THE STATUS OF THE ERROR MESSAGE
NOTE:
Make sure the vehicle being tested is a CAN BUS VEHICLE. If not, false error messages may be displayed.

NOTE:
Make sure the scan tool is updated to the latest software.
1. Using the scan tool, record the error message.
2. Disconnect the scan tool from the Data Link Connector (DLC).
3. Cycle the ignition from on to off three times.
4. Turn the ignition on.
  Does the scan tool display this same error message?

  Yes
  - Go To 2.
  No
  - The conditions that caused this error message to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
(D72) DIAGNOSTIC CAN C (+) CIRCUIT SHORTED TO GROUND

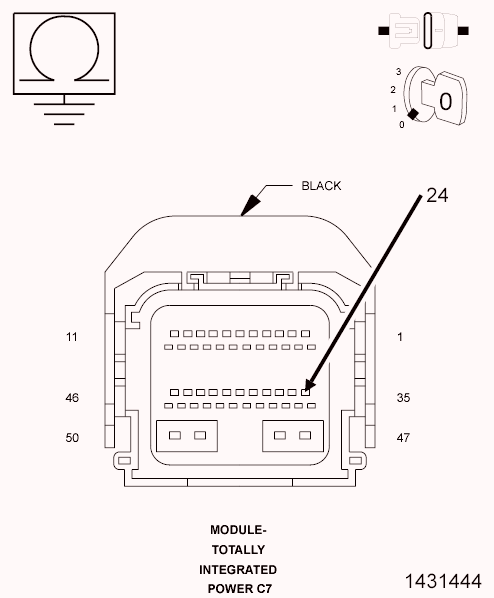

Fig 1: Measuring Resistance Between Ground And (D72) Diagnostic CAN C (+) Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Totally Integrated Power Module C7 harness connector.
3. Disconnect the scan tool from the DLC.
4. Measure the resistance between ground and the (D72) Diagnostic CAN C (+) circuit.
  Is the resistance below 100.0 Ohms?

  Yes
  - Repair the (D72) Diagnostic CAN C (+) circuit for a short to ground.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Inspect the wiring and connectors for damage or shorted circuits. If okay, replace the Totally Integrated Power Module in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
