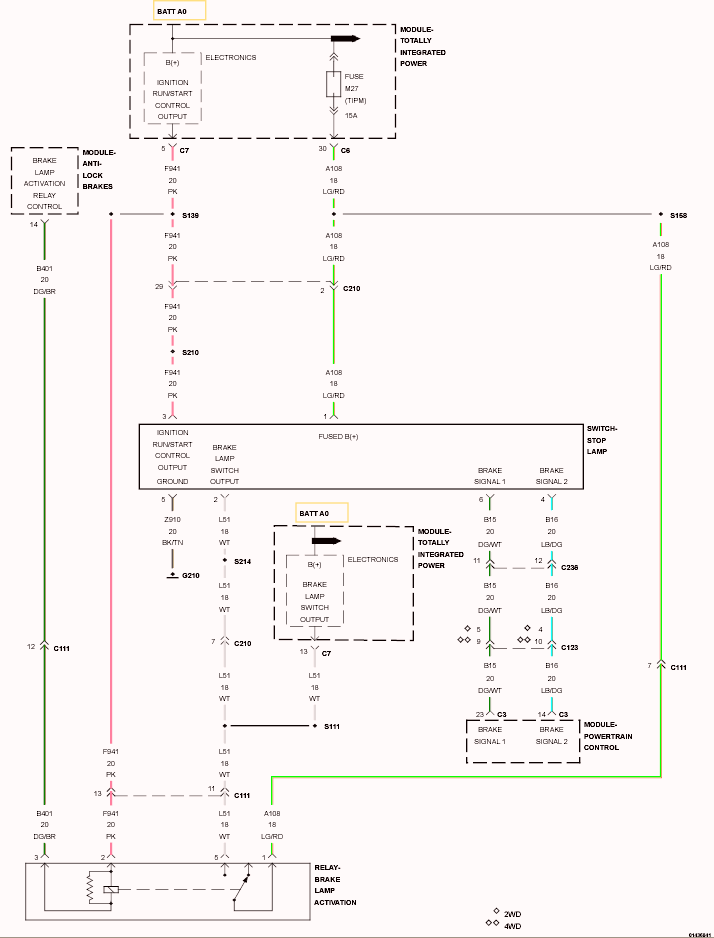

Fig 1: Brake Lamp Switch Circuit Schematic
Courtesy of CHRYSLER LLC
For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article
.
