Instrument Panel Center Speaker

WARNING: This page is about a different car, the 2019 RAM 3500 HD and 2019 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

Disconnect and isolate the negative battery cable(s). Refer to STANDARD PROCEDURE .
Remove the sun sensor with the instrument panel center speaker grille. Refer to SENSOR, SUN, REMOVAL AND INSTALLATION .
NOTE:
Do not remove sun sensor from the instrument panel center speaker grille.

Courtesy of CHRYSLER GROUP, LLC

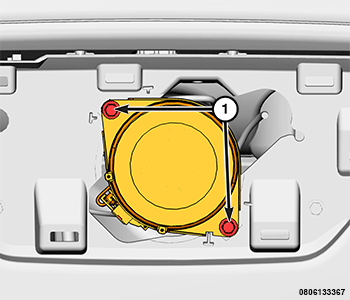

Remove the two screws (1) securing the speaker to the instrument panel.

Courtesy of CHRYSLER GROUP, LLC

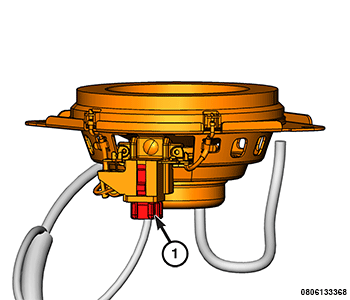

Disconnect the wire harness connector (1) and remove the speaker.

INSTALLATION

Connect the wire harness connector and install the speaker.
Install and tighten the two mounting fasteners securely.
Install the sun sensor with the instrument panel center speaker grille. Refer to SENSOR, SUN, REMOVAL AND INSTALLATION .
Connect the negative battery cable(s). Refer to STANDARD PROCEDURE .
