Removal And Installation
WARNING: This page is about a different car, the 2019 RAM 3500 HD and 2019 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
REMOVAL
WARNING:
Disable the airbag system before attempting any steering wheel, steering column or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.
- Disconnect and isolate the negative battery cable(s). Refer to BATTERY DISCONNECT AND CONNECT
.

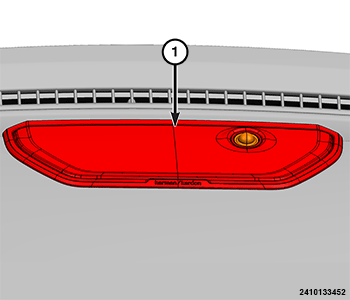

- Remove the speaker grille (1) that contains the sun sensor from the top of the instrument panel using a trim stick or equivalent.

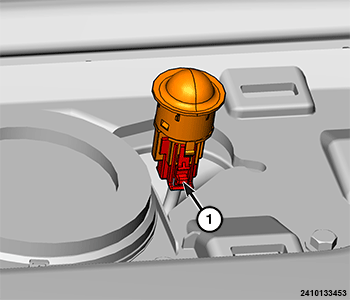

- Disconnect the wire harness connector (1).

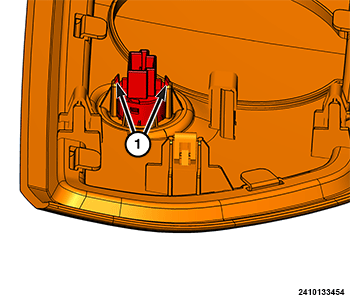

- Disengage the two tabs (1) and remove the sun sensor from the speaker grille.
INSTALLATION
- Align the tab on the sun sensor with the opening in the speaker grille.
- Gently push the sun sensor toward the panel until the sensor tabs are securely engaged.
- Connect the wire harness connector to the sun sensor and install the speaker grille to the instrument panel. Make sure the snap retainers are fully engaged.
- Connect the negative battery cable(s). Refer to BATTERY DISCONNECT AND CONNECT .
