Removal And Installation

WARNING: This page is about a different car, the 2019 RAM 3500 HD and 2019 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

Disconnect and isolate the negative battery cable(s). Refer to BATTERY, STANDARD PROCEDURE .
Remove the steering wheel. Refer to WHEEL, STEERING, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

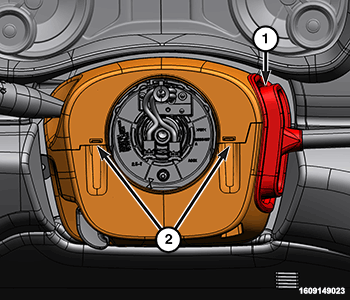

If equipped, release the shifter boot (1) from the steering column shroud.
Disengage the upper steering column shroud (2) from the lower steering column shroud.

Courtesy of CHRYSLER GROUP, LLC

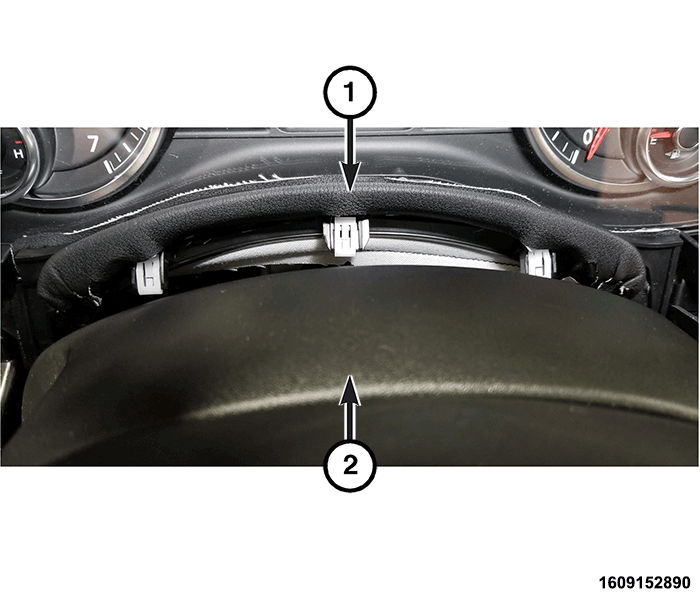

Disengage the gap hider (1) from the upper steering column shroud (2) and remove the upper steering column shroud (2).

Courtesy of CHRYSLER GROUP, LLC

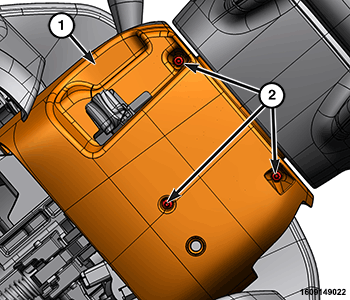

Remove the three steering column shroud screws (2).
Remove the lower steering column shroud (1).

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

Position the lower steering column shroud (1) to the steering column.
Install and securely tighten the three steering column shroud screws (2).

Courtesy of CHRYSLER GROUP, LLC
Engage the upper steering column shroud (2) to the gap hider (1).

Courtesy of CHRYSLER GROUP, LLC
Install the upper steering column shroud (2) to the lower steering column shroud.
If equipped, install the shifter boot (1) to the steering column shroud.
Install the steering wheel. Refer to WHEEL, STEERING, REMOVAL AND INSTALLATION .
Connect the negative battery cable(s). Refer to BATTERY, STANDARD PROCEDURE .
