Removal And Installation

REMOVAL

1. Disconnect and isolate the negative battery cable(s). Refer to STANDARD PROCEDURE .
2. Set the parking brake.
3. Remove the steering column shroud. Refer to SHROUD, STEERING COLUMN, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

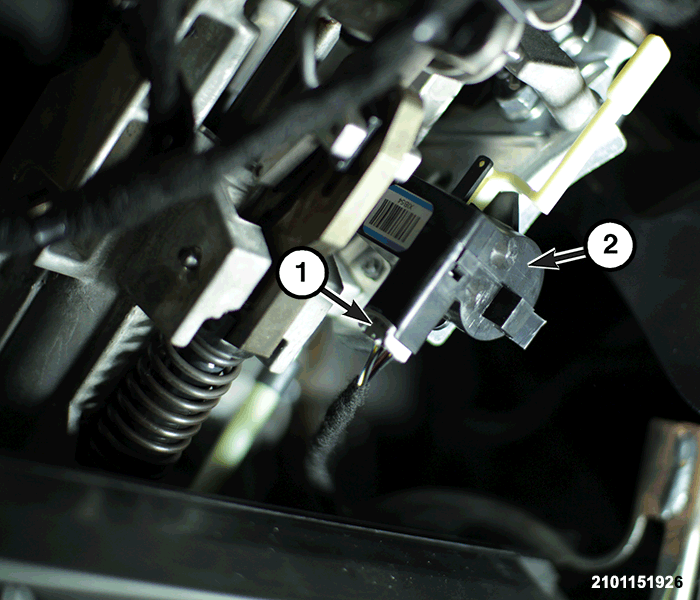

4. Disconnect the shift interlock solenoid (2) wire harness connector (1).

   Courtesy of CHRYSLER GROUP, LLC

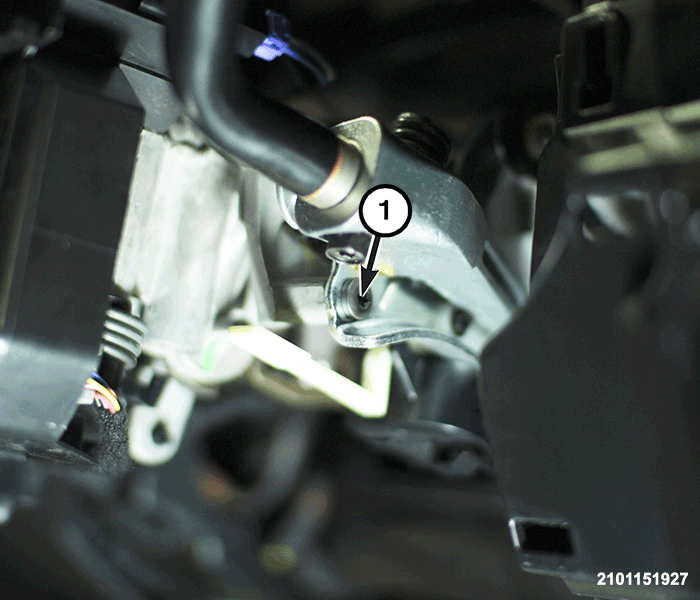

5. Remove and DISCARD  the fastener (1) from the bottom side of the shifter assembly.

   Courtesy of CHRYSLER GROUP, LLC

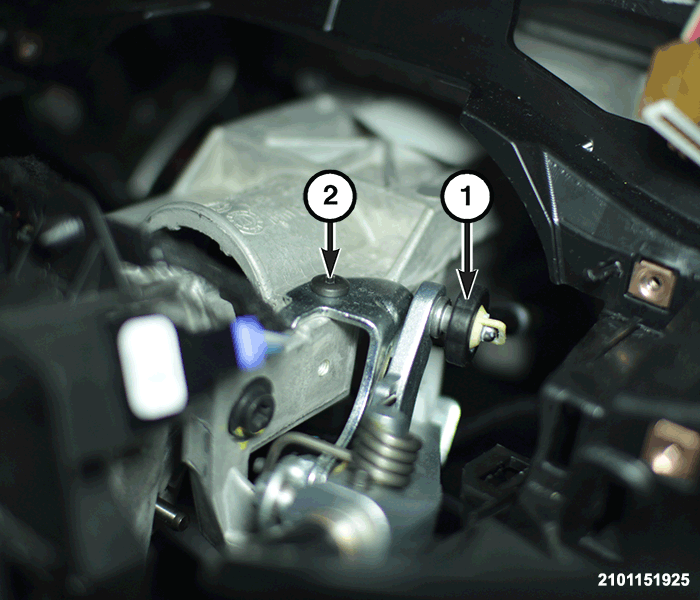

6. Remove the shift cable (1) from the shifter assembly. Remove and DISCARD  the fastener (2) from shifter assembly and remove from vehicle.

   Courtesy of CHRYSLER GROUP, LLC

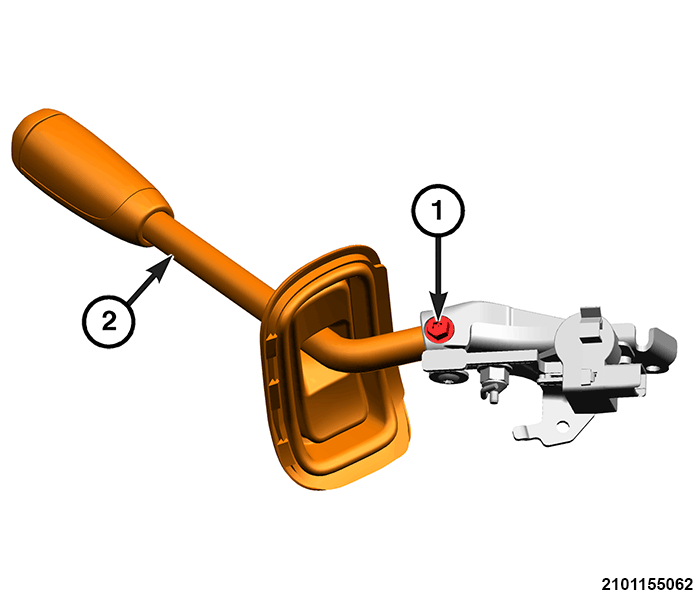

7. If necessary, remove the fastener (1) securing the handle to the shifter assembly. Remove the handle (2) from the shifter assembly.

   Courtesy of CHRYSLER GROUP, LLC

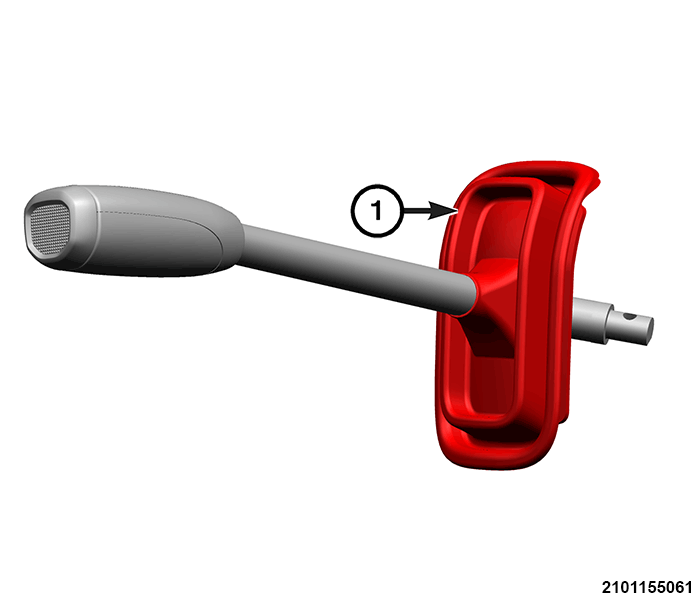

8. Remove the shifter boot (1) from the shifter handle.

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

1. If replaced, install the shifter boot (1) on the shifter handle.

   Courtesy of CHRYSLER GROUP, LLC

2. If serviced, Install the handle (2) in the shifter assembly. Install the fastener (1) securing the handle to the shifter assembly. Tighten to the proper torque specification. Refer to SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

3. Place the shifter assembly and install a NEW  fastener (2), torque to proper torque specification. Refer to SPECIFICATIONS . Install the shift cable (1) to the shifter assembly.

   Courtesy of CHRYSLER GROUP, LLC

4. Install a NEW  fastener (1) in the bottom side of the shifter assembly, torque to proper torque specification. Refer to SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

5. Connect the shift interlock solenoid (2) wire harness connector (1).
6. Install the steering column shroud. Refer to SHROUD, STEERING COLUMN, REMOVAL AND INSTALLATION .
7. Release the parking brake.
8. Connect the negative battery cable(s). Refer to STANDARD PROCEDURE .
