Removal And Installation

WARNING: This page is about a different car, the 2019 RAM 3500 HD and 2019 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the tire and wheel assembly (s).
  3. Mark the propeller shaft and pinion flange for installation reference.
  4. Remove propeller shaft. Refer to SHAFT, DRIVE, REAR, REMOVAL AND INSTALLATION .
  5. Remove axle shafts. Refer to SHAFT, AXLE, REMOVAL AND INSTALLATION .
  6. Rotate pinion gear three or four times.
    GC0107775Courtesy of CHRYSLER GROUP, LLC
  7. Measure and record the Total Torque To Rotate (TTTR) necessary to rotate the pinion gear and differential with an inch pound torque wrench (2).

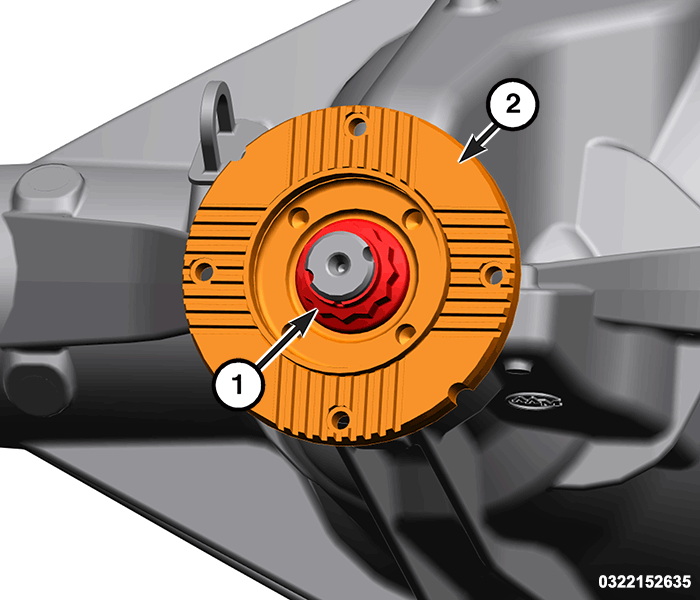

    GC0186003Courtesy of CHRYSLER GROUP, LLC
  8. Remove pinion flange nut (1).
  9. Remove pinion flange with Pinion Flange Puller (special tool #8992, Remover, Pinion Flange) (2).

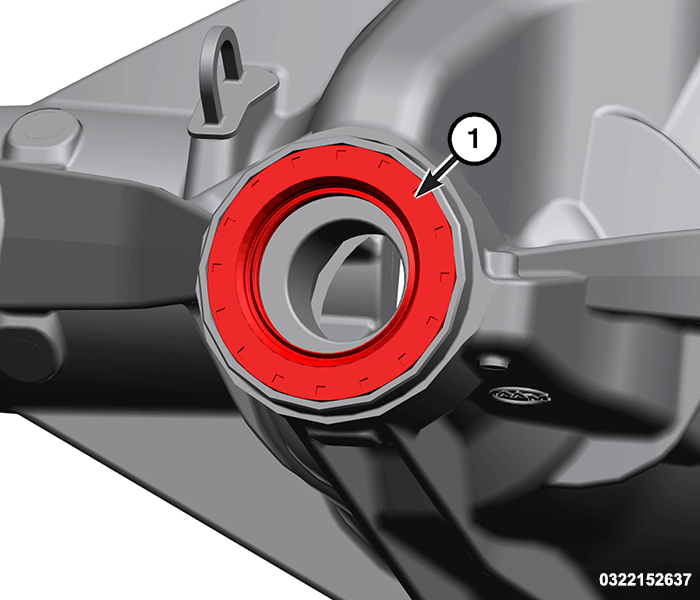

    GC0184893Courtesy of CHRYSLER GROUP, LLC
  10. Remove pinion shaft seal with seal puller (special tool #7794-A, Remover, Seal) and a slide hammer.

INSTALLATION

  1. Install NEW  pinion seal with Handle (special tool #C-4171, Driver Handle, Universal) (1) and Installer (special tool #2068500030, Installer, Pinion Oil Seal) (2).
  2. Apply a light coat of pipe sealant to the pinion flange splines.
  3. Lightly tap the pinion flange onto the pinion until a few threads are showing.
  4. Install flange washer and NEW  pinion nut.
    GC0186003Courtesy of CHRYSLER GROUP, LLC
  5. Tighten pinion nut (1) to. Refer to TORQUE SPECIFICATION .
    GC0107775Courtesy of CHRYSLER GROUP, LLC
  6. Rotate pinion several times to seat bearings.
  7. Measure pinion (1) Torque To Rotate with an inch pound torque wrench (2) and compare it to recorded measurement. Tighten pinion nut in small increments, until pinion Torque To Rotate is 0.40-0.57 N.m (3-5 in. lbs.) greater than recorded measurement.
  8. Rotate pinion several times then verify pinion Torque To Rotate again.
  9. Install axle shafts. Refer to SHAFT, AXLE, REMOVAL AND INSTALLATION .
  10. Install propeller shaft with reference marks aligned. Refer to SHAFT, DRIVE, REAR, REMOVAL AND INSTALLATION .
  11. Check differential fluid level. Refer to CAPACITIES AND RECOMMENDED FLUIDS, SPECIFICATIONS .
