Removal And Installation

WARNING: This page is about a different car, the 2019 RAM 3500 HD and 2019 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

Remove the front bumper. Refer to BUMPER, FRONT, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

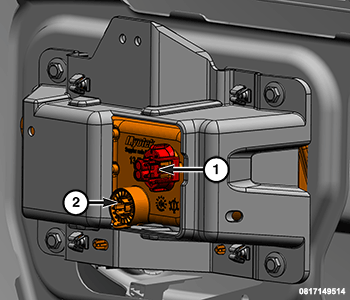

Disconnect the wire harness connector (1) from the fog lamp (2).

Courtesy of CHRYSLER GROUP, LLC

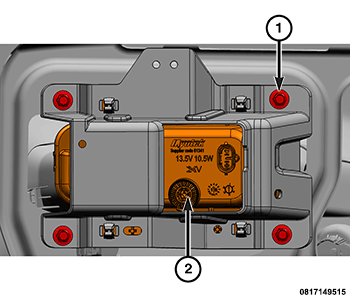

Remove the four bolts (1) securing the fog lamp assembly (2) to the bumper.

Courtesy of CHRYSLER GROUP, LLC

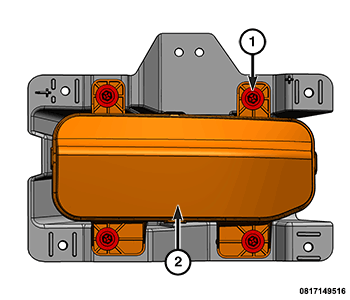

Remove the four screws (1) securing the lamp (2) to the bracket.

INSTALLATION

Position the fog lamp onto the bracket and install the four screws.
Install the four bolts.
Connect the wire harness connector.
Install the front bumper. Refer to BUMPER, FRONT, REMOVAL AND INSTALLATION .
