Removal And Installation

Courtesy of CHRYSLER GROUP, LLC

REMOVAL

1. Disconnect and isolate the negative battery cable(s). Refer to STANDARD PROCEDURE .
2. Raise and support the vehicle, refer to HOISTING, STANDARD PROCEDURE .
3. Remove the wheelhouse splash shields, refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION

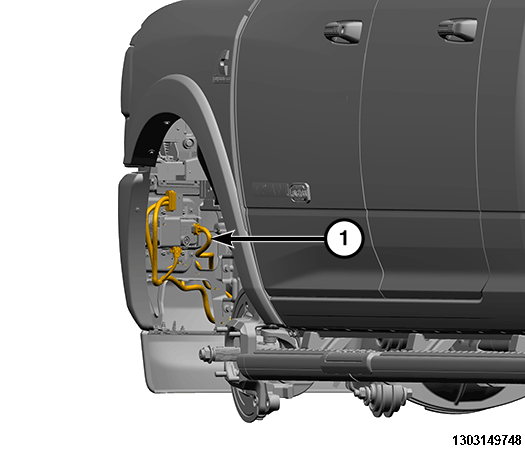

4. Disconnect the wire harness connectors (1).

   Courtesy of CHRYSLER GROUP, LLC

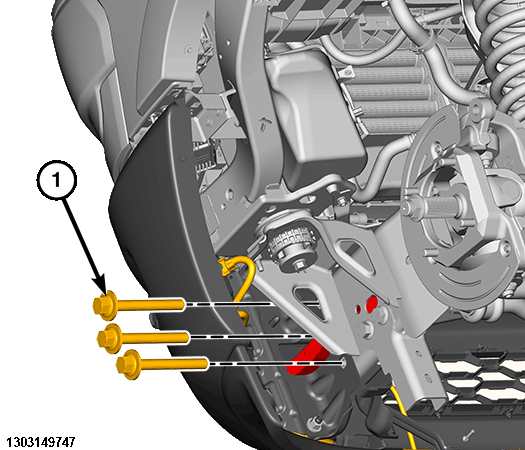

5. Remove the three bolts (1) from each side.

   Courtesy of CHRYSLER GROUP, LLC

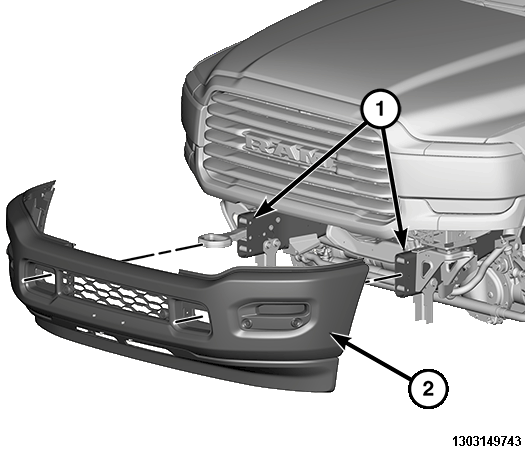

6. Remove the bumper assembly (2).

Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

1. Position the bumper assembly (2) back onto the frame tips (1).

   Courtesy of CHRYSLER GROUP, LLC

2. Install the three bolts (1) onto each side and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

3. Connect the wire harness connectors (1).
4. Install the wheelhouse splash shields, refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION
5. Connect the negative battery cable(s). Refer to STANDARD PROCEDURE .
