Engine Mount Isolator Brackets

WARNING: This page is about a different variant/trim than selected.

Remove both left/right engine mount isolators, in the above procedure. Refer to ENGINE MOUNT ISOLATORS .
NOTE:
Left Engine Mount Isolator Bracket;

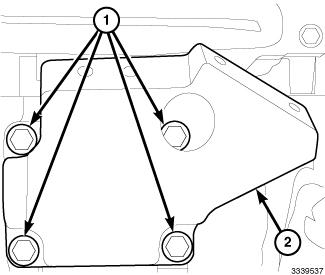

Fig 1: Differential Support Bracket & Retaining Bolts
Courtesy of CHRYSLER LLC
Remove the differential support bracket retaining bolts (1) and remove the support bracket (2).

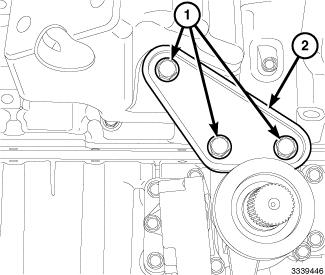

Fig 2: Engine Mount Isolator Bracket & Retaining Bolts
Courtesy of CHRYSLER LLC
Remove the engine mount isolator bracket retaining bolts (1) and remove the bracket (2).

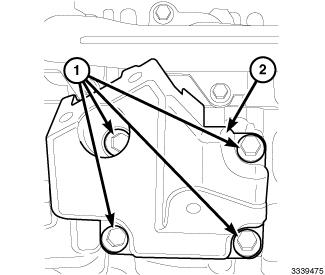

Fig 3: Differential Support Bracket & Retaining Bolts
Courtesy of CHRYSLER LLC

NOTE:
Right Engine Mount Isolator Bracket;
Remove the differential support bracket retaining bolts (1) and remove the support bracket (2).

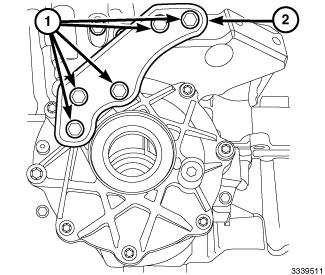

Fig 4: Engine Mount Isolator Bracket & Retaining Bolts
Courtesy of CHRYSLER LLC
Remove the engine mount isolator bracket retaining bolts (1) and remove the bracket (2).
