Engine Mount Isolators

WARNING: This page is about a different variant/trim than selected.

Fig 1: Negative Battery Cable

Courtesy of CHRYSLER LLC

Disconnect and isolate the negative battery cable (1).
Remove the intake manifold. Refer to MANIFOLD, Intake, Removal, 5.7L .

Fig 2: Oil Control Valve, Electrical Connector & Retaining Bolt
Courtesy of CHRYSLER LLC

NOTE:
The Oil Control Valve (OCV) (3) is located under the intake manifold.
Disconnect OCV electrical connector (1).
Remove OCV retaining bolt (2).

Fig 3: Oil Control Valve
Courtesy of CHRYSLER LLC

NOTE:
To remove the OCV, the engine must be at room temperature.
While rotating the OCV back and forth to break the seal, remove the OCV.
Remove the engine oil dipstick tube retaining nut at the right exhaust manifold and remove the dipstick tube.
Raise and support the vehicle.

Fig 4: Lower Splash Shield & Fasteners
Courtesy of CHRYSLER LLC
Remove the belly pan retainers (1) and remove the belly pan.
Remove both left/right front axle half shafts from the vehicle. Refer to Removal .

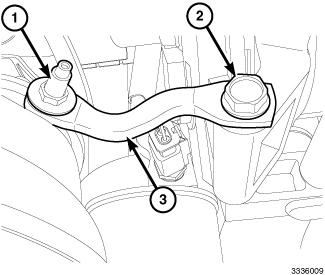

Fig 5: Engine Mount Isolator Retaining Nut, Generator Support Bracket & Retaining Bolt
Courtesy of CHRYSLER LLC
Remove the generator support bracket to engine mount isolator retaining nut (1).
Remove the generator support bracket retaining bolt (2) and remove the support bracket (3).
Remove the engine oil filter. Refer to FILTER, Engine Oil, Removal, 5.7L .
Lower the vehicle.

Fig 6: Engine Mount Heat Shield Retaining Nuts, Lower Mount Retaining Bolts & Heat Shields
Courtesy of CHRYSLER LLC

NOTE:
Left side shown in illustration, right side similar.
Remove both left/right engine mount isolator heat shield (4) retaining nuts (3) and remove the heat shields
Remove both left/right engine mount isolator to engine cradle retaining bolts (2).

Fig 7: Engine Lift Fixture & Adapter
Courtesy of CHRYSLER LLC

NOTE:
Do not use air tools to install the engine lift fixture.
Install the Engine Lift Fixture (special tool #8984B, Fixture, Engine Lifting) (1), Engine Lift Adapter (special tool #8984-UPD, Adapter, Engine Lift) (2) and the Engine Support Fixture (special tool #8534B, Fixture, Driveline Support) (3).
Raise the engine to provide clearance to remove the engine mounts.

Fig 8: Engine Mount & Retaining Bolts
Courtesy of CHRYSLER LLC

NOTE:
Left side shown in illustration, right side similar.
Remove both left/right engine mount isolator retaining bolts (1) and remove isolators (2).
