P127D-Fuel Pump Control Circuit 2 High: Notes

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

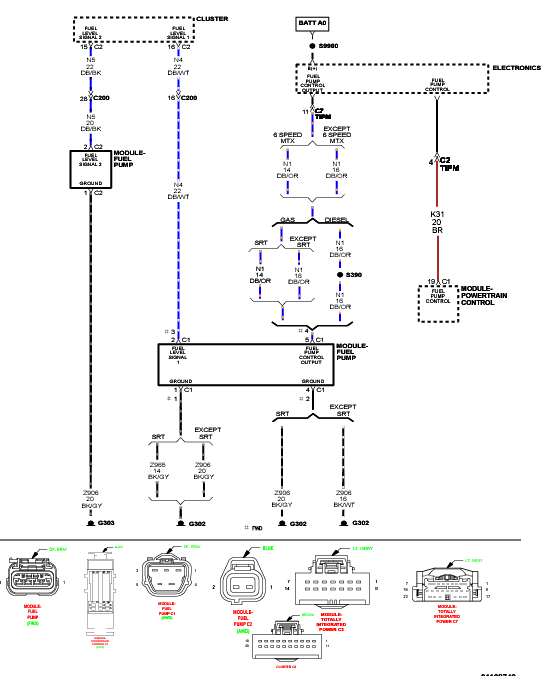

Fig 1: Fuel Pump Control Circuit
GC0103606Courtesy of CHRYSLER LLC
