B106B-Rear Defrost Control Circuit Low: Notes

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

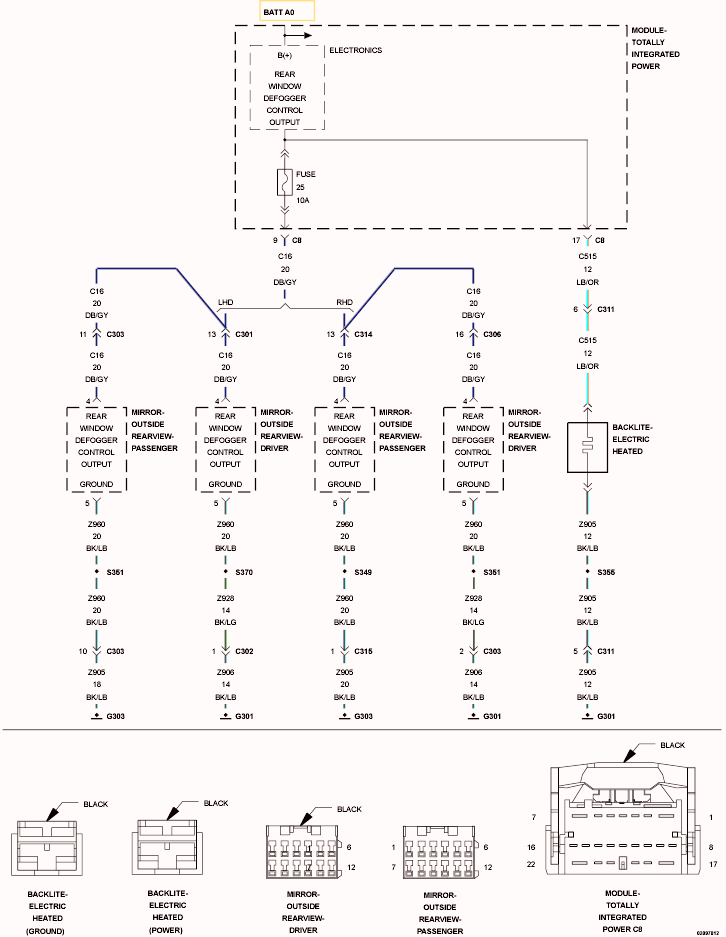

Fig 1: Rear Defrost Control Circuit
GC0103600Courtesy of CHRYSLER LLC
