Rear Defogger Switch - Installation

INSTALLATION

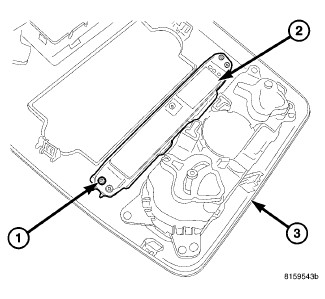

1. Position the accessory switch bezel (2) onto the back of the instrument panel center bezel (3).
2. Install the two screws (1) that secure the accessory switch bezel to center bezel. Tighten the screws to 2 Nm (17 in. lbs.).
3. Install the center bezel onto the instrument panel Instrument Panel Bezel - Installation.
4. Reconnect the negative battery cable.
