Starter Motor: Removal: 2.0/2.4L

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Removing/Installing Battery Negative Cable
GC0020023Courtesy of DAIMLERCHRYSLER CORP.
  1. Open hood.
  2. Remove air cleaner box cover, refer to appropriate article, (Refer to ENGINE/AIR INTAKE SYSTEM/AIR CLEANER ELEMENT - REMOVAL) or (Refer to ENGINE/AIR INTAKE SYSTEM/AIR CLEANER ELEMENT - REMOVAL) .
  3. Disconnect and isolate the battery negative cable. See Fig 1.
  4. Raise vehicle on hoist.
  5. Remove Engine Structural Collar, (Refer to ENGINE/ENGINE BLOCK/STRUCTURAL COVER - REMOVAL) .

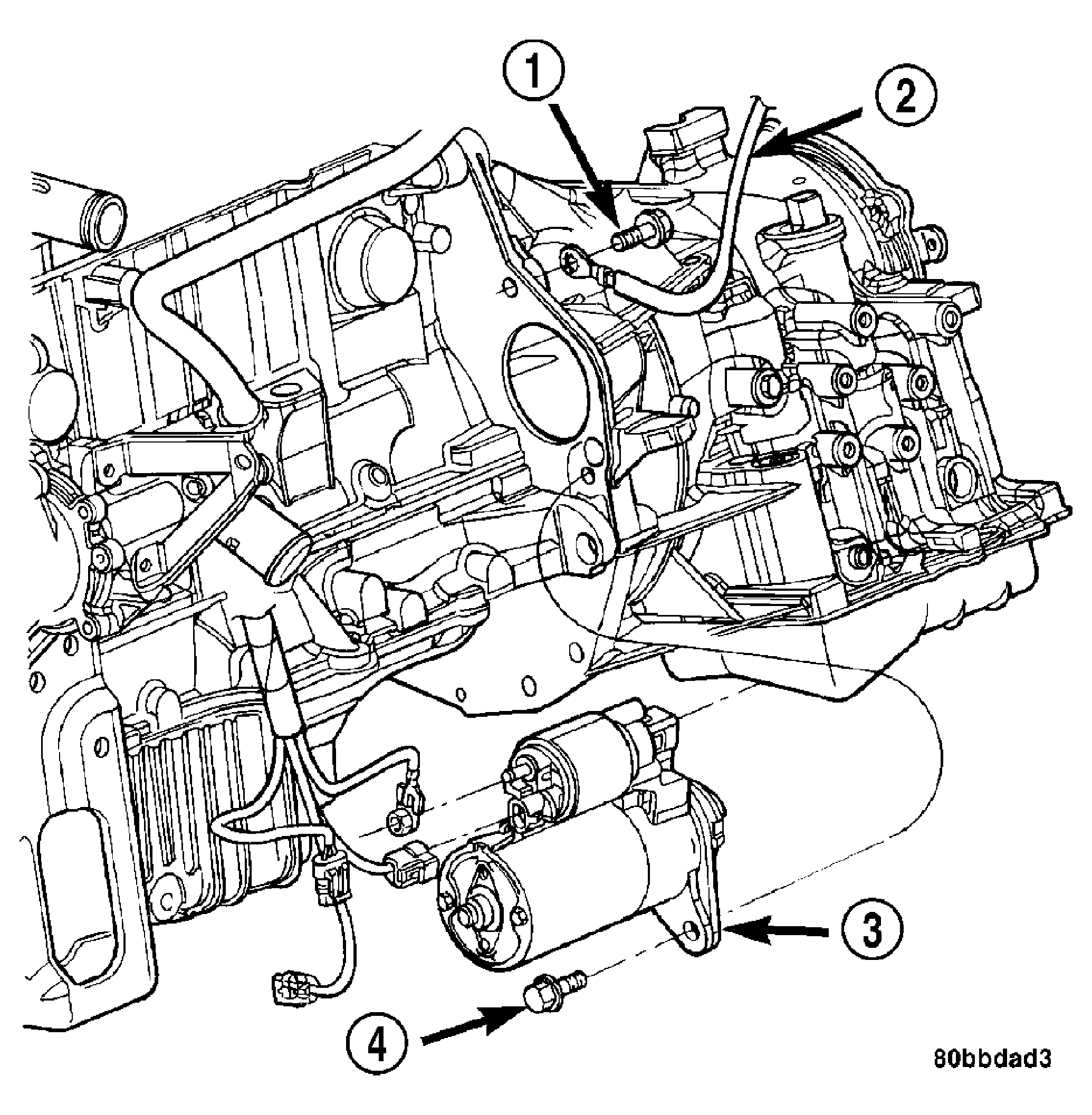

    Fig 2: Removing/ Installing Starter Motor
    GC0020069Courtesy of DAIMLERCHRYSLER CORP.
    1 - BOLT
    2 - GROUND
    3 - STARTER
    4 - BOLT
  6. Disconnect starter motor wiring. See Fig 2.
  7. Remove starter motor mounting bolts. See Fig 2.
  8. Remove starter motor from vehicle.
