Transponder - TPM: Removal: Rear

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove wheelhouse splash shield at transponder requiring service. (Refer to BODY/EXTERIOR/REAR WHEELHOUSE SPLASH SHIELD - REMOVAL)

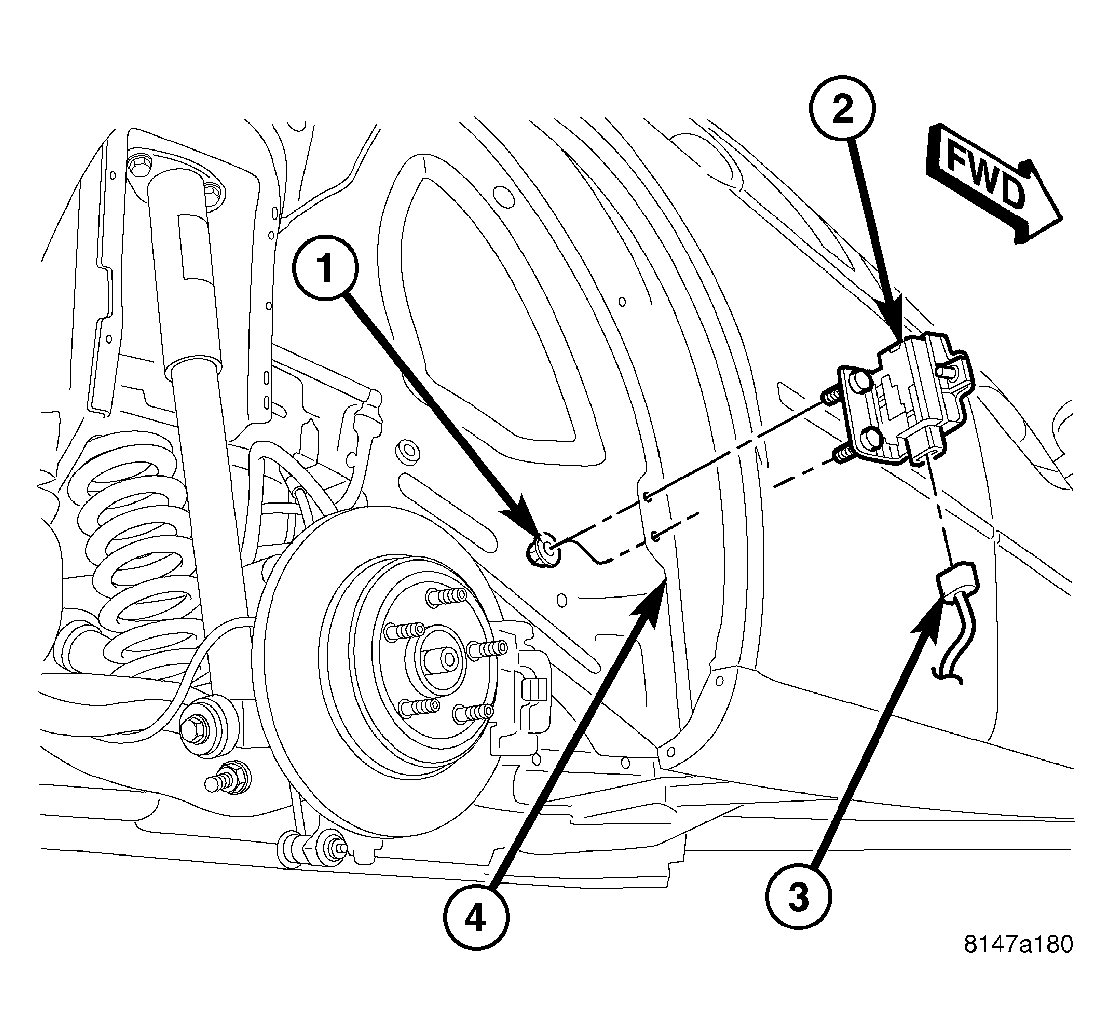

    Fig 1: REAR TRANSPONDER MOUNTING
    GC0039620Courtesy of DAIMLERCHRYSLER CORP.
  2. Disconnect wiring harness connector (3) at transponder (2).
  3. Remove mounting nuts (1), then remove transponder (2) from body seam flange (4).
