Shield-Wheelhouse - Rear: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Shield 1
GC0013437Courtesy of DAIMLERCHRYSLER CORP.
  1. Raise and support the vehicle.
  2. Remove the wheels from the side of the vehicle being serviced (Refer to TIRES/WHEELS - REMOVAL) .
  3. Remove the rear portion of the body side cladding from the side of the vehicle being serviced (Refer to BODY/EXTERIOR/BODY SIDE CLADDING - REMOVAL) .
  4. Remove the nuts (1), bolt (2) and the push-pins (4), that secure the lower rear wheelhouse shield (3) to the body.
  5. Remove lower rear wheelhouse shield from the vehicle.

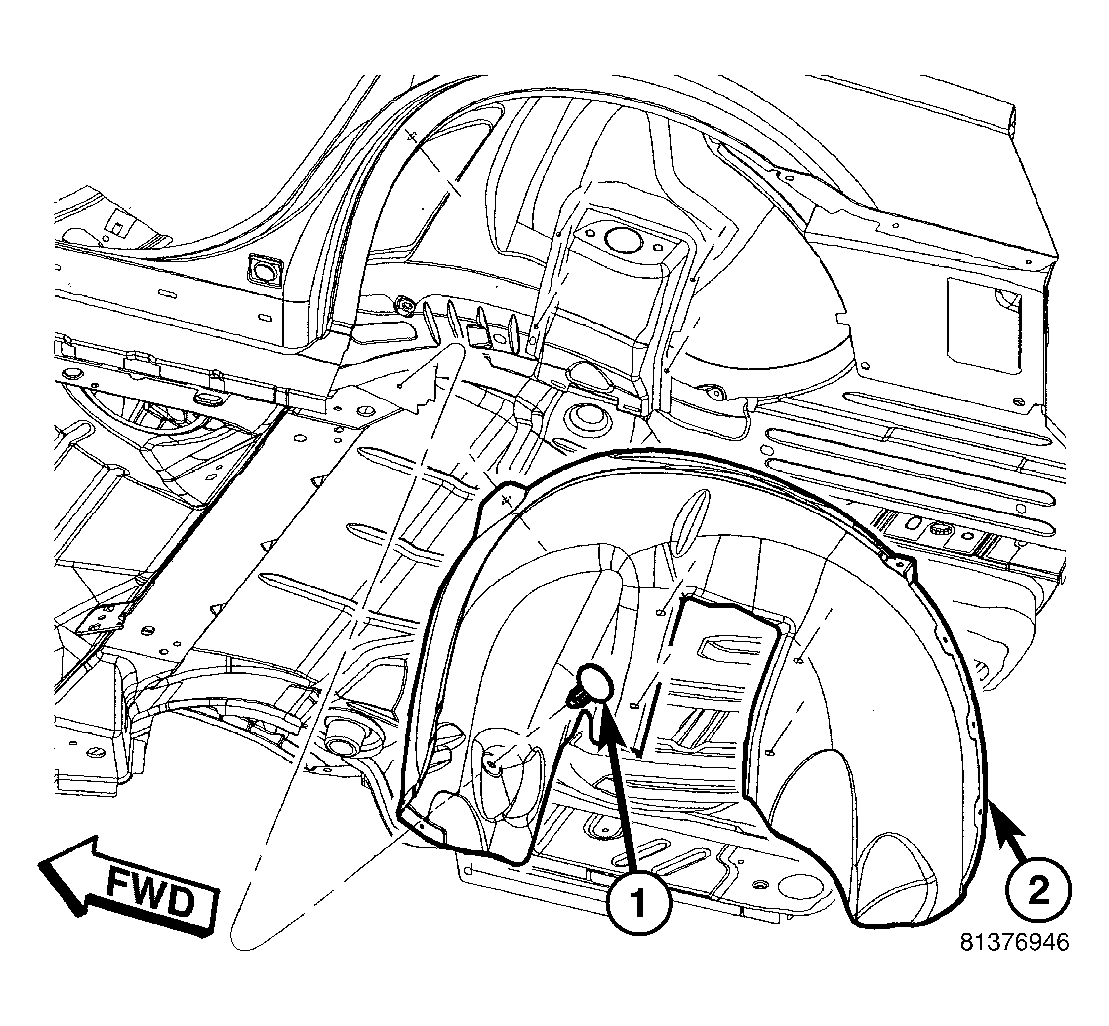

    Fig 2: Shield 2
    GC0013438Courtesy of DAIMLERCHRYSLER CORP.
  6. Remove the push-pins (1) that secure the rear wheelhouse shield (2) to the body.
  7. Remove the rear wheelhouse shield from the vehicle.
