Section 75 (1.6L SOHC Engine): Mount-Right: Installation
WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

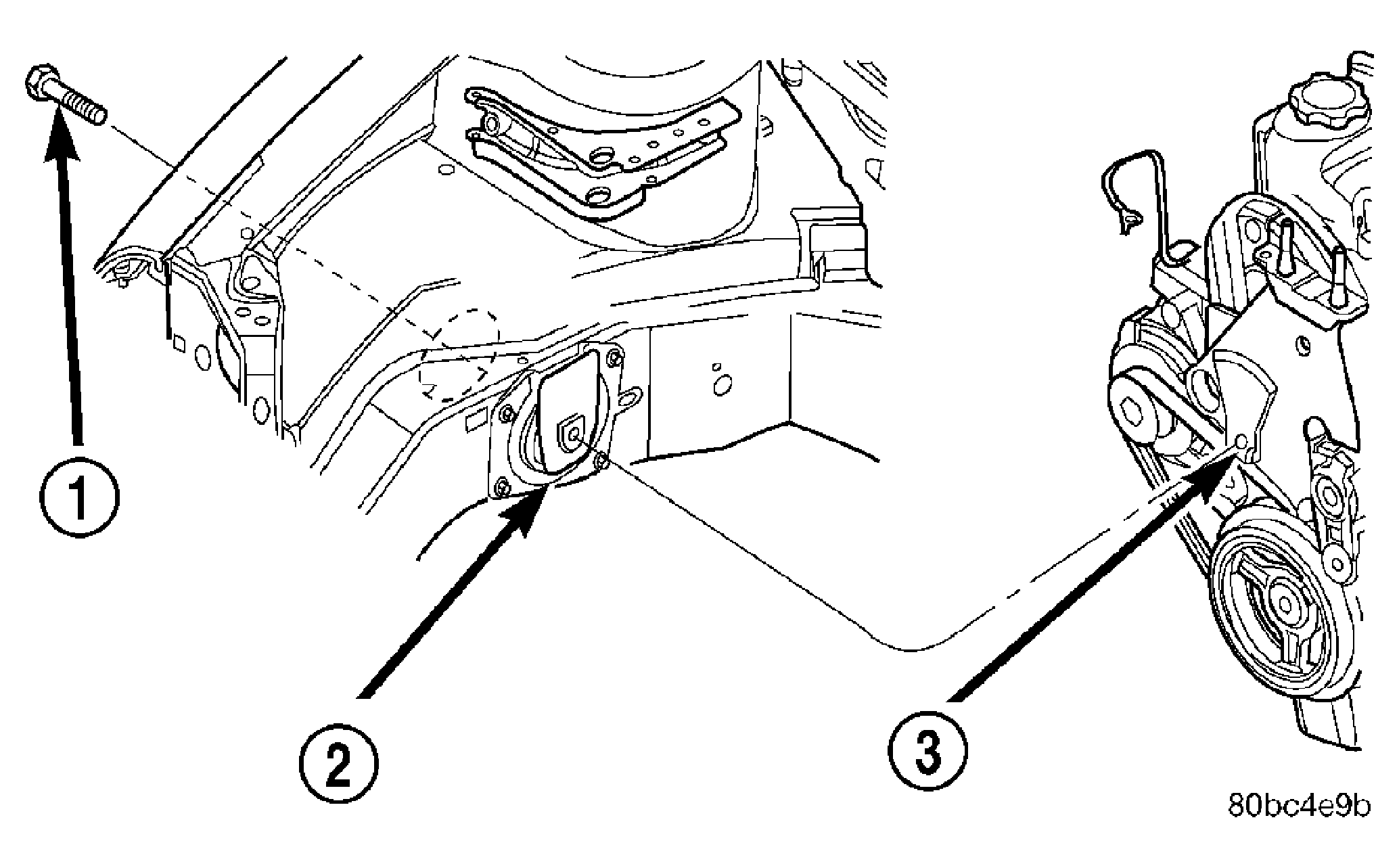

| 1 - SNUBBER PAD |
| 2 - RIGHT ENGINE MOUNT |
| 3 - BOLTS |
- Position the mount (2) into the original position on body frame rail. See Fig 1.NOTE: Engine mount must be installed in the original position on body frame rail. If mount (2) was not marked or frame rail was replaced, perform the following procedure.
- Perform the following procedure if mount position was not previously marked or the frame rail was replaced:
- Insert the new mount loosely in frame rail.
- Align the four holes in the mount with the mating holes in the rail such that the holes are concentric (frame rail holes centered in the mount holes).
- Using a permanent ink marker or equivalent, mark the position of engine mount to the body frame rail while maintaining mounting hole concentricity.
- Ensure the mount maintains originally marked position and install mount bolts. Tighten bolts to 28 N.m (250 in. lbs.). See Fig 1.
- Install right engine mount bracket (3) (Refer to ENGINE/ENGINE MOUNTING/ENGINE MOUNT BRACKET - INSTALLATION) .
- Remove the support from under engine.
