Front Axle - 175 FIA: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

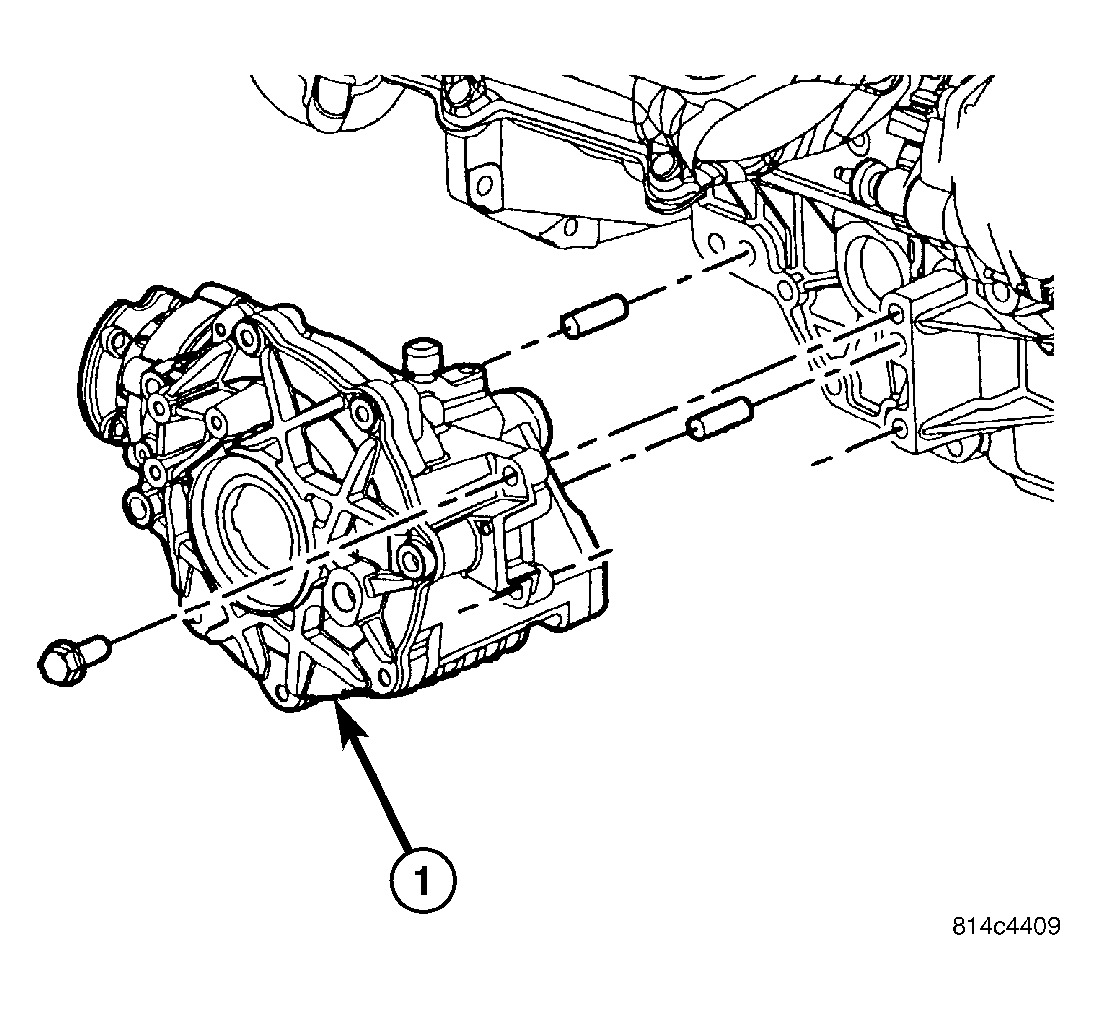

Fig 1: Front Axle Removal/Installation

Courtesy of DAIMLERCHRYSLER CORP.

Install front axle assembly (1) into position. Install and torque seven bolts to 65 N.m (48 ft. lbs.).

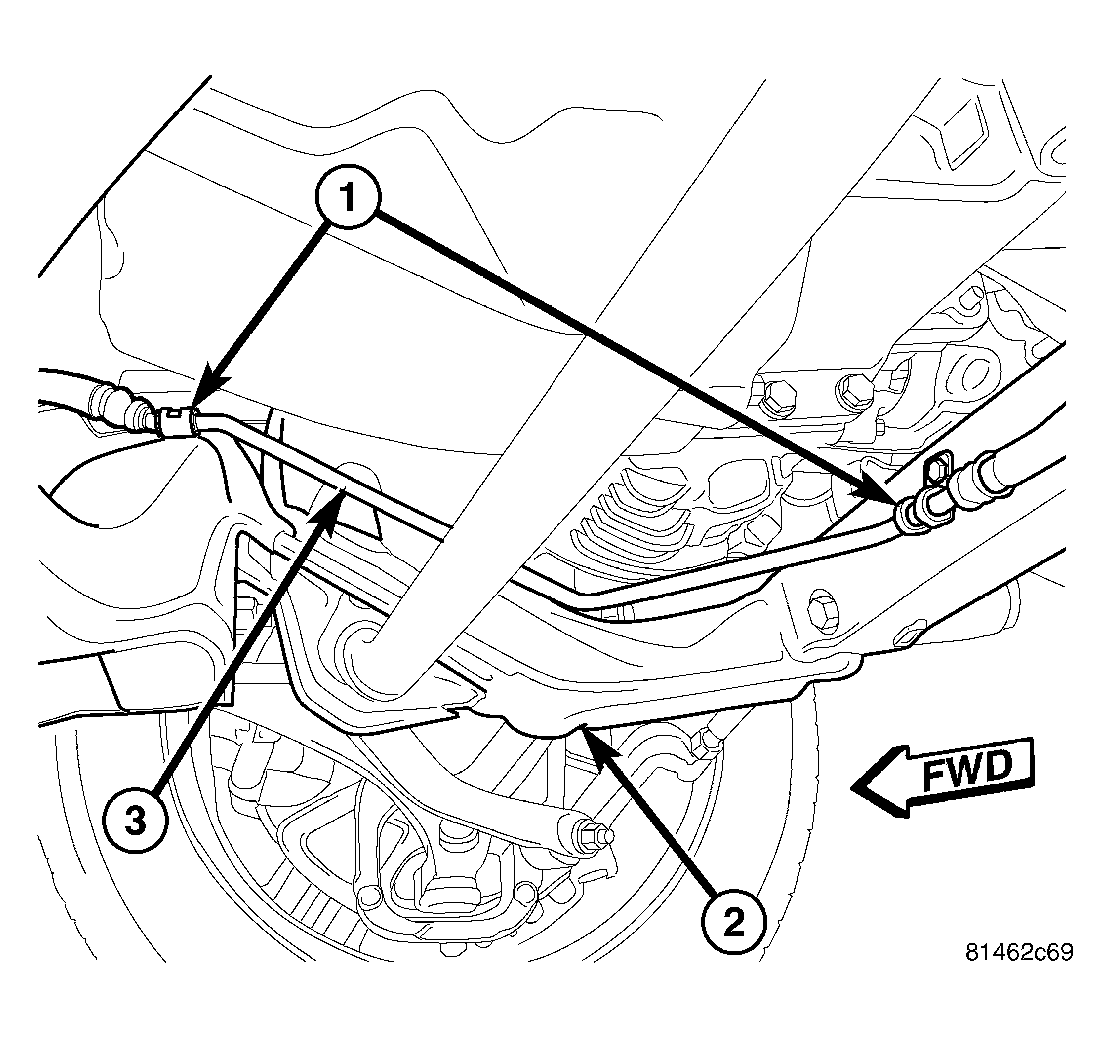

Fig 2: Return Hose Routing Clips
Courtesy of DAIMLERCHRYSLER CORP.
Install power steering return line to cradle by fastening clips (1) as shown in Fig 2.

Fig 3: Front Drive Axle Housing
Courtesy of DAIMLERCHRYSLER CORP.
Install axle assembly support bracket (1) and torque bolts to 28 N.m (21 ft. lbs.).
Install RH catalytic converter/exhaust pipe assembly. (Refer to EXHAUST SYSTEM/CATALYTIC CONVERTER - INSTALLATION)
Install front propeller shaft. (Refer to DIFFERENTIAL & DRIVELINE/PROPELLER SHAFT - INSTALLATION)
Install intermediate shaft. (Refer to DIFFERENTIAL & DRIVELINE/INTERMEDIATE SHAFT - INSTALLATION)
Install both front halfshafts. (Refer to DIFFERENTIAL & DRIVELINE/HALF SHAFT - INSTALLATION)

Fig 4: Fluid Fill Plug Location
Courtesy of DAIMLERCHRYSLER CORP.
Fill axle with 600ml (0.64 qts.) of Mopar® 75W-90 Synthetic Gear Lubricant. Fluid level should be at or near bottom of fill hole. Torque fill plug (1) to 30 N.m (22 ft. lbs.).
Lower vehicle.
