Section 7 (Differential & Driveline): Shaft-Intermediate: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

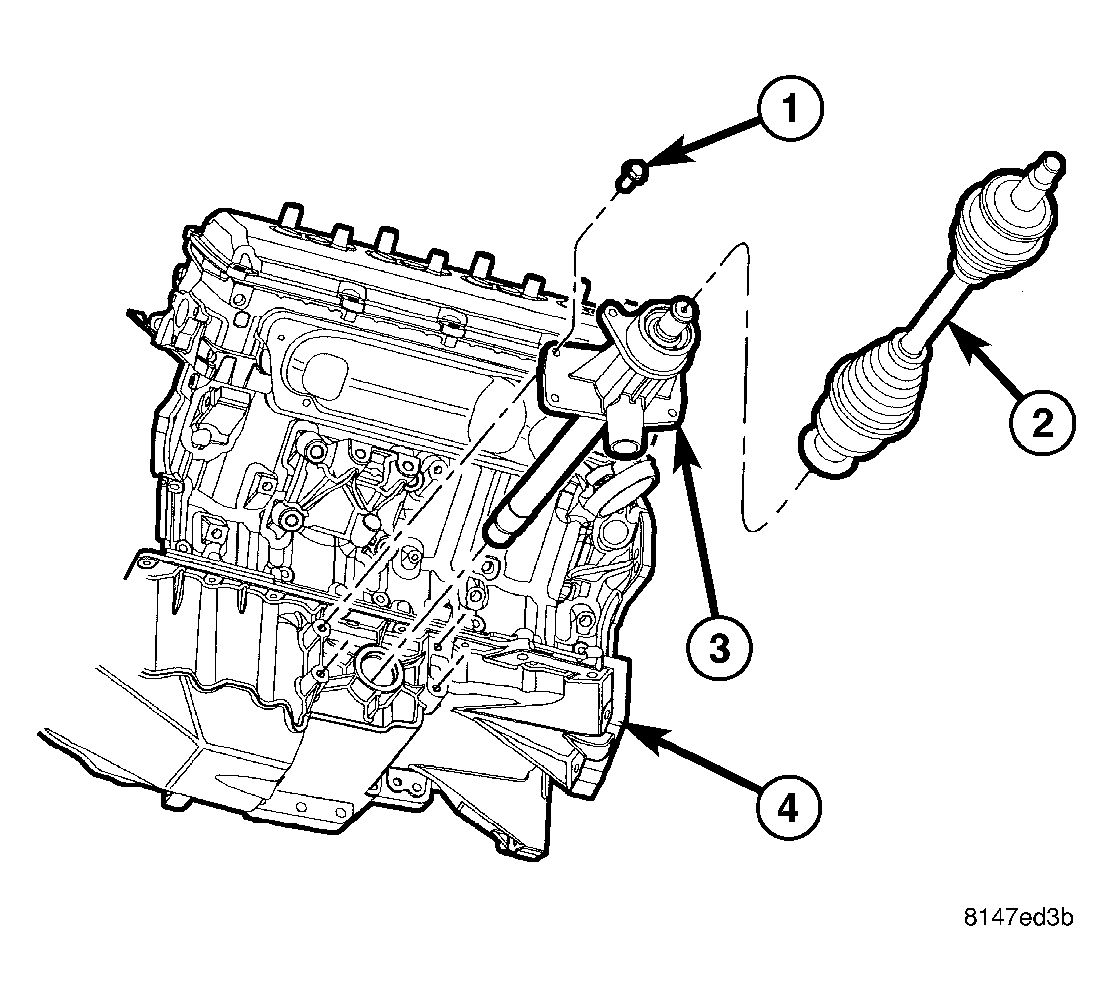

Fig 1: Left Drive Axle and Intermediate Shaft

Courtesy of DAIMLERCHRYSLER CORP.

Install intermediate shaft assembly (3). Install and torque four intermediate shaft-to-oil pan bolts (1) to 25 N.m (18 ft. lbs.).
Install left halfshaft assembly (2).
