Air Outlet - Dodge

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Only the outboard passenger side instrument panel air outlet can be serviced separately. For service of the other instrument panel air outlets refer to DODGE and to DODGE .

NOTE: LHD model shown in illustrations. RHD model similar.

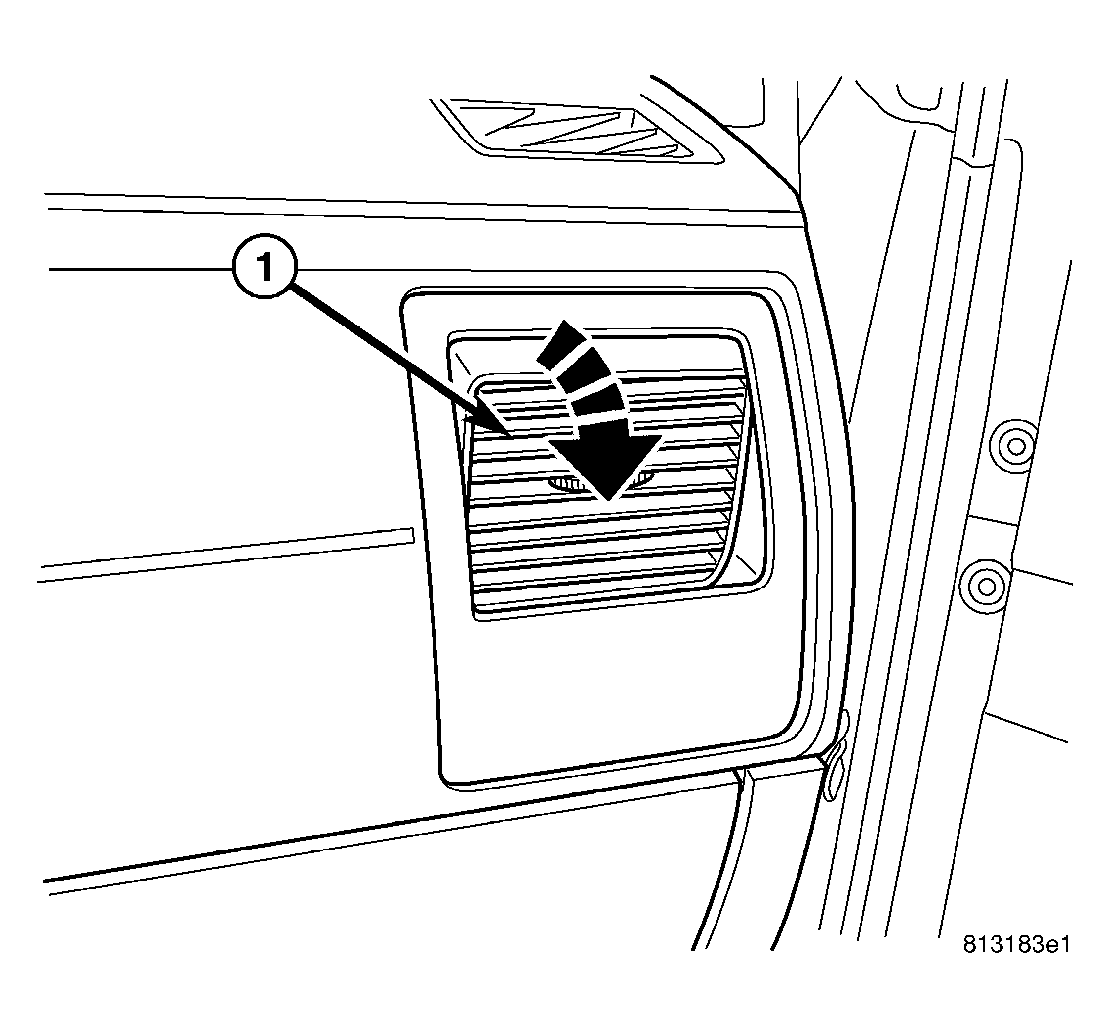

Fig 1: Outboard Passenger Side Air Outlet Barrel

Courtesy of DAIMLERCHRYSLER CORP.

Rotate the top of the outboard passenger side air outlet barrel (1) downwards.

Fig 2: Removing Air Outlet
Courtesy of DAIMLERCHRYSLER CORP.
Gently pull out on the bottom edge of the air outlet (1) to release the snap clip retainers that secure the outlet to the instrument panel (2).
Remove the air outlet from the instrument panel.
