Sensor-Ambient Air Temperature: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

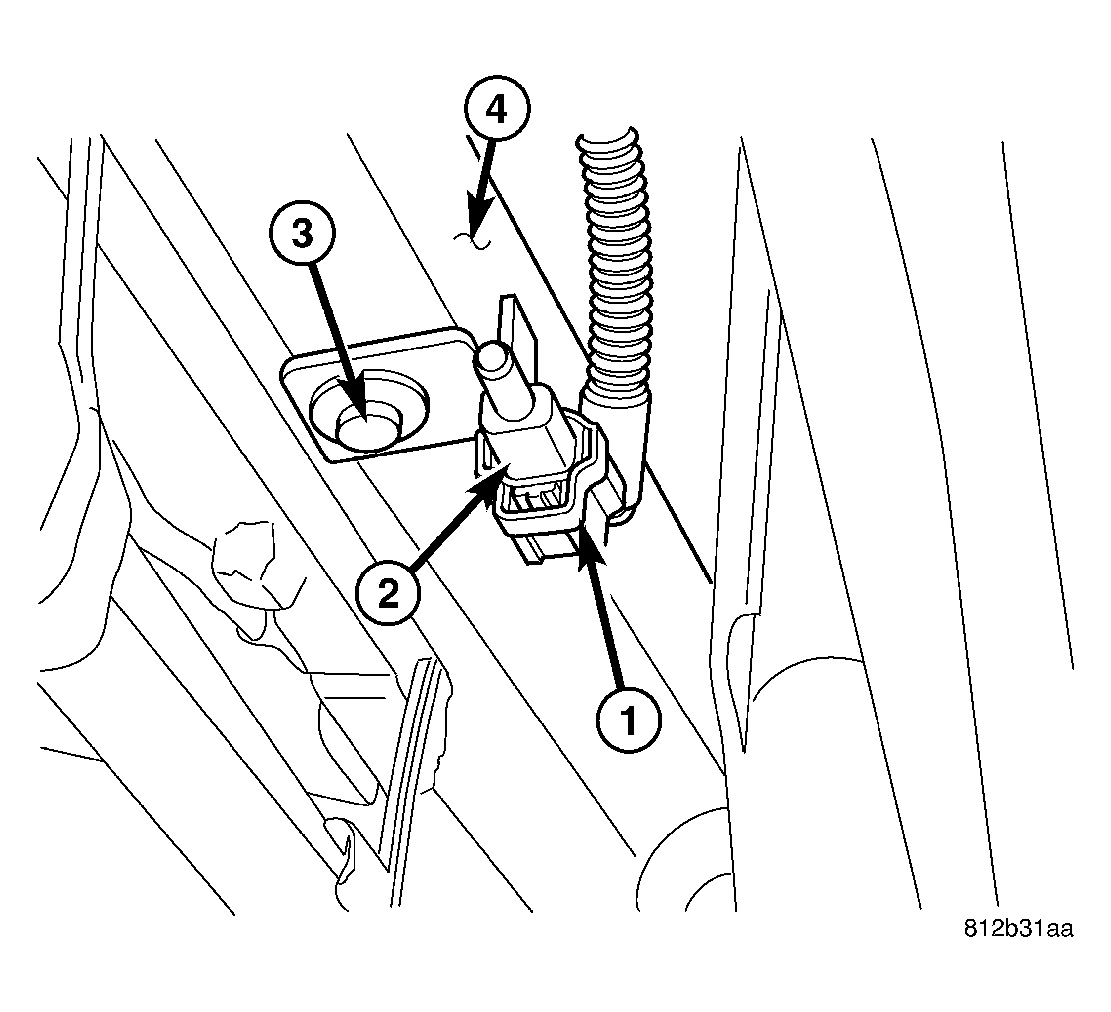

Fig 1: Remove/Install Ambient Air Temperature Sensor
GC0013936Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the negative battery cable.
  2. Raise and support the vehicle.
  3. Remove the front end belly pan (Refer to REMOVAL ).
  4. Disconnect the wire harness connector (1) from the ambient air temperature sensor (2).
  5. Remove the push pin (3) that secures the ambient air temperature sensor to the bottom of the front bumper beam (4).
  6. Remove the ambient air temperature sensor from the front bumper beam.
