Heater Unit: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

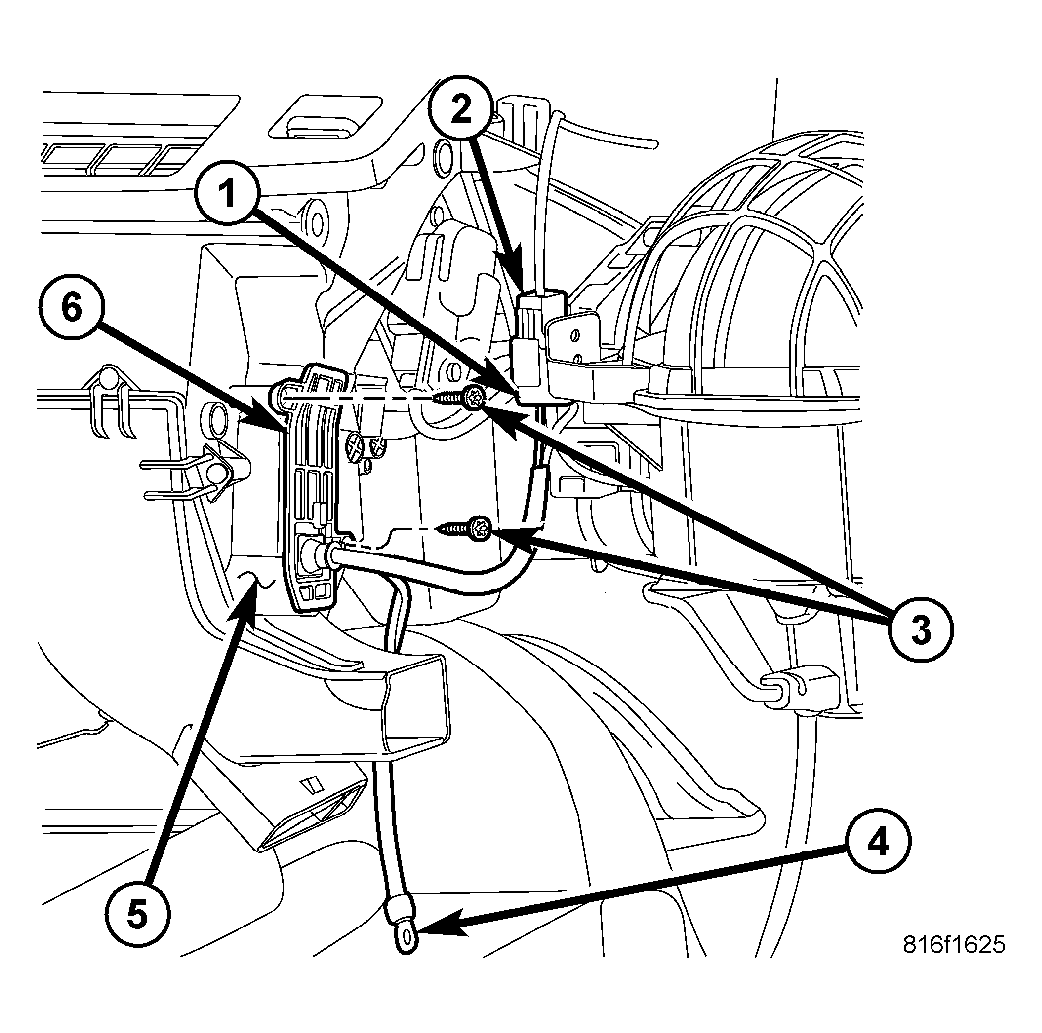

Fig 1: PTC Heater Unit Install
GC0039753Courtesy of DAIMLERCHRYSLER CORP.
NOTE: LHD model shown. RHD model similar.
  1. Position the positive temperature coefficient (PTC) heater unit and adapter plate (6) into the passenger side of the air distribution housing (5). Make sure to engage the end of the heater unit into the molded locator area in the driver side of the air distribution housing and make sure that the rubber wiring grommet is fully engage over the adapter plate.
  2. Install the two screws (3) that secure the PTC heater unit to the air distribution housing. Tighten the screws to 2.2 N.m (20 in. lbs.).
  3. Install the PTC ground strap (4). Tighten the retainer securely to ensure a good ground.
  4. Connect the PTC wire harness connector (1) to the headlamp and dash wire harness lead (2).
  5. Install the glove box bin (Refer to BODY/INSTRUMENT PANEL/BIB-GLOVE BOX - INSTALLATION) .
  6. Reconnect the negative battery cable.
