Switch-Heated Seat: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

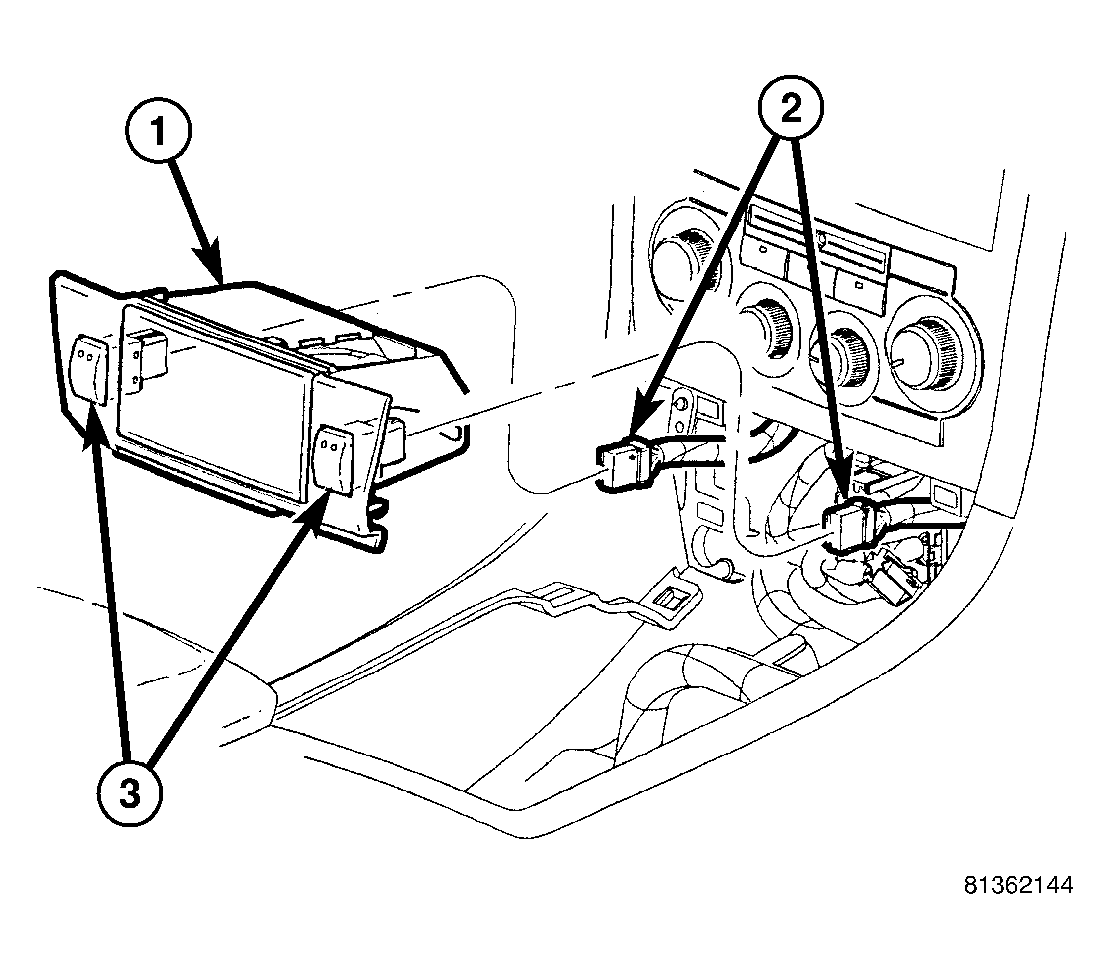

Fig 1: Removing/Installing Ash Receiver
GC0015941Courtesy of DAIMLERCHRYSLER CORP.
  1. From the front of the ash receiver (1), gently push the heated seat switch (3) in through the front of the bezel.
  2. Connect the heated seat switch connector (2) onto the heated seat switch (3).
  3. Install the ash receiver (1) into the instrument panel, (Refer to BODY/INSTRUMENT PANEL/ASH RECEIVER - INSTALLATION) .
  4. Connect the battery negative cable.
  5. Verify heated seat system operation.
