Ash Receiver: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

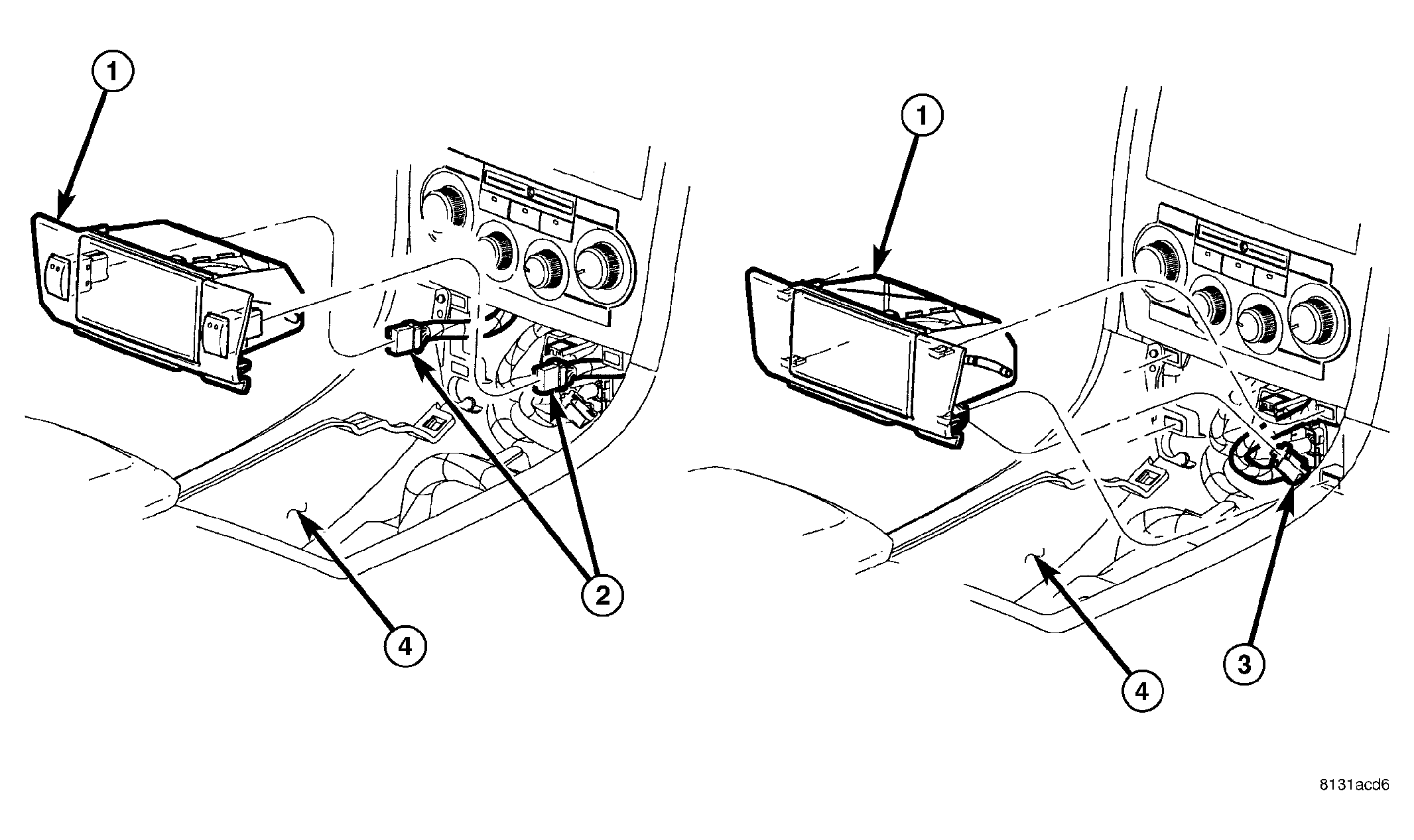

Fig 1: Locating Ash Receiver Wire Connections
GC0013460Courtesy of DAIMLERCHRYSLER CORP.
  1. If equipped and removed, install the heated seat switches into the ash receiver (Refer to ELECTRICAL/HEATED SEATS/SEAT SWITCH - INSTALLATION) and connect the wire harness connectors (2) to the switches.
  2. If removed, install the lighter assembly into the ash receiver and connect the wire harness connector (3) to the lighter.
  3. Install the ash receiver assembly (1) into the instrument panel by carefully pushing the receiver housing into the instrument panel until the snap retainers are fully seated.
  4. Install the gear shift center bezel onto the floor console (4)
  5. Place the gear shift lever into Park and release the emergency brake.
  6. Reconnect the negative battery cable.
