Section 40 (Audio System (Service Information)): Speaker: Removal: Subwoofer

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

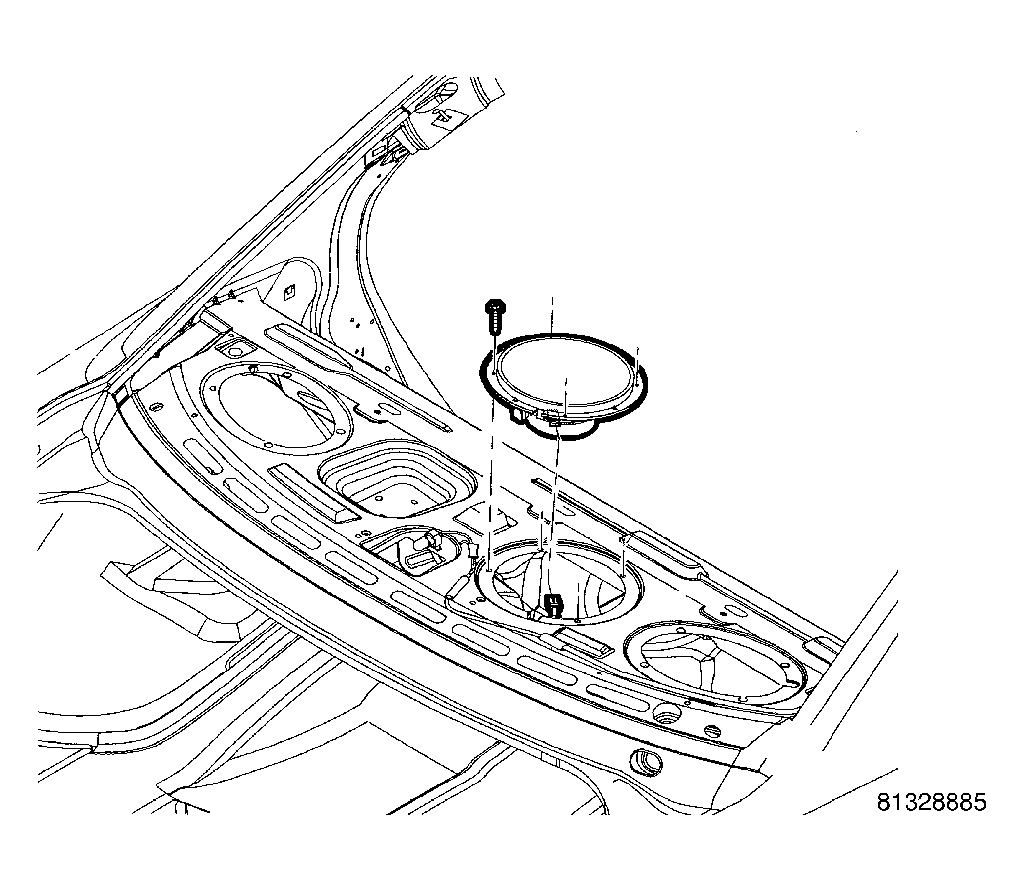

Fig 1: Subwoofer
GC0015577Courtesy of DAIMLERCHRYSLER CORP.
NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. (Refer to ELECTRICAL/BATTERY SYSTEM - STANDARD PROCEDURE) .
  1. Disconnect and isolate the battery negative cable.
  2. Remove upper C-pillar trim (Refer to BODY/INTERIOR/C-PILLAR TRIM - REMOVAL) .
  3. Remove the lower C-pillar trim (Refer to BODY/INTERIOR/C-PILLAR TRIM - REMOVAL) .
  4. Remove the rear shelf trim (Refer to BODY/INTERIOR/REAR SHELF TRIM PANEL - REMOVAL) .
  5. Remove the mounting fasteners.
  6. Disconnect the electrical harness connector and remove subwoofer.
