Park Assist Sensor: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

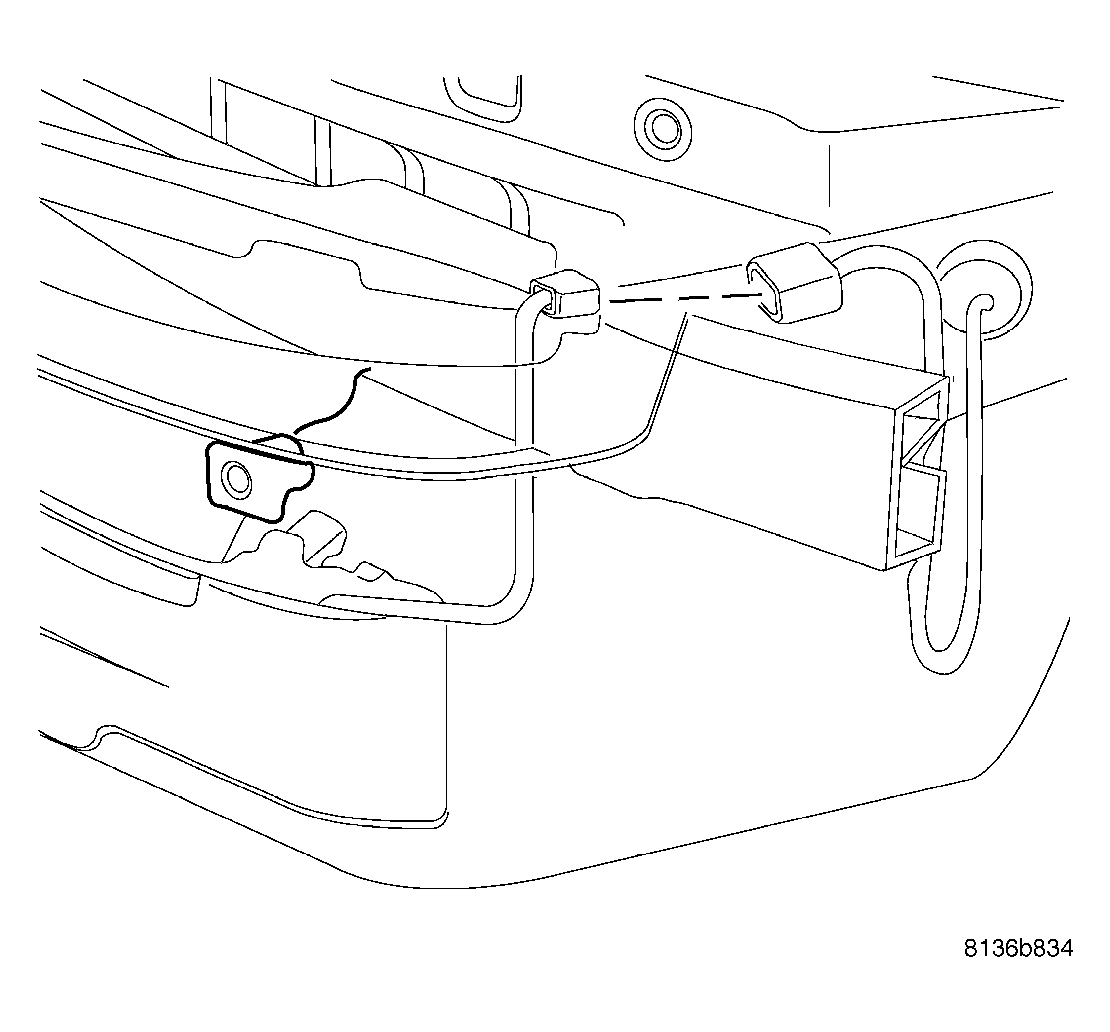

Fig 1: Remove/Install Park Assist Sensor
GC0015719Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the Park Assist Sensor over the retaining housing and firmly snap into housing in rear fascia.
  2. Install the rear fascia (Refer to FRAME & BUMPERS/BUMPERS/REAR FASCIA - INSTALLATION) .
  3. Connect the battery negative cable.
