Section 36 (Frame & Bumpers): Fascia-Rear: Installation
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

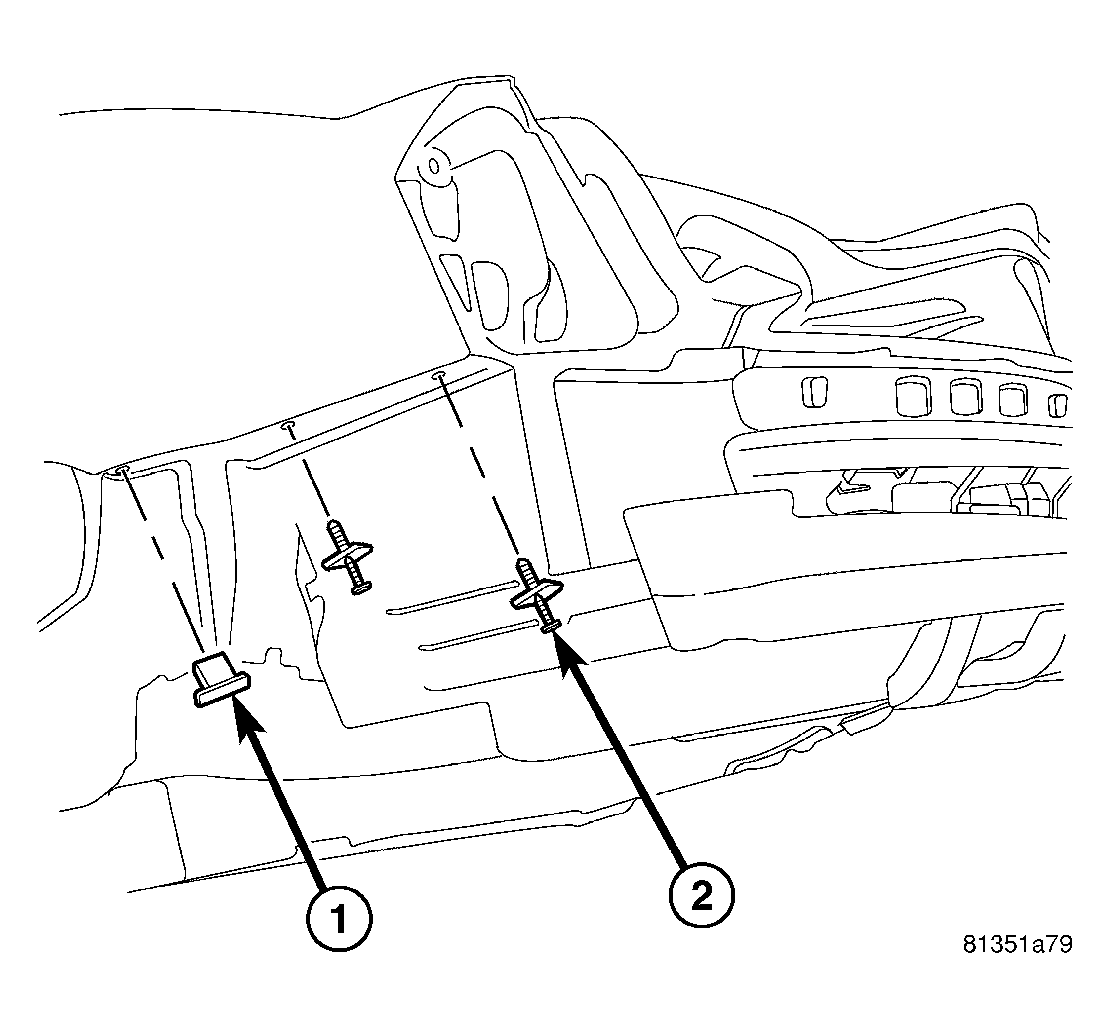

- If removed, install the two push-pin retainers (2) and a new nut insert (1) into each quarter panel.

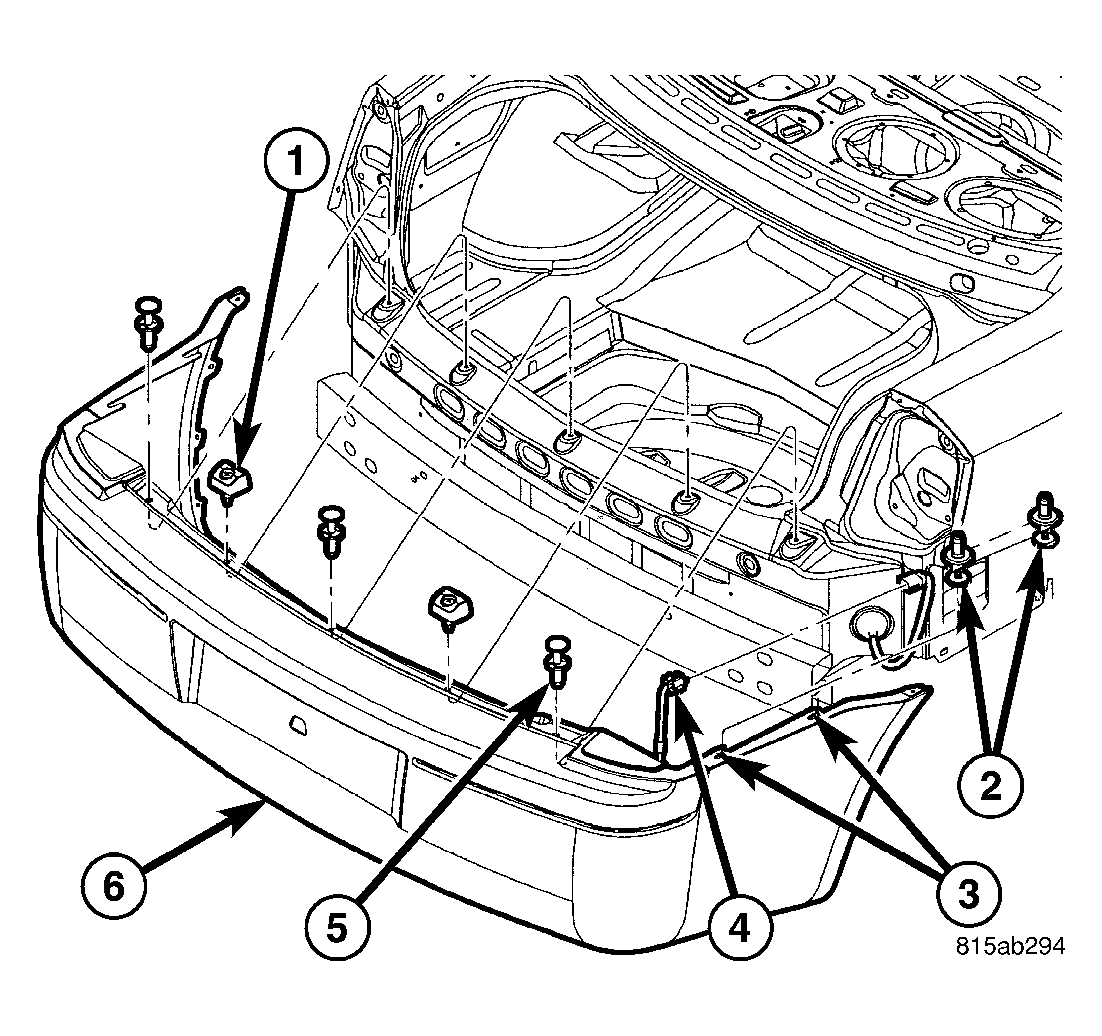

NOTE: 300 Shown. Magnum and Charger similar.
- If removed on SRT8 models, install the lower fascia onto the rear fascia assembly (6) using new metal retaining clips.
- If equipped and removed, install the park assist sensors into the rear fascia assembly (Refer to ELECTRICAL/CHIME/BUZZER/SENSOR-PARK ASSIST - INSTALLATION) .
- Position the rear fascia assembly to the vehicle and connect the license plate lamp and park assist wire harness connector (4), if equipped.
- Engage the two push-pin retainers (2) into the two slots (3) in each side of the rear fascia assembly by pushing the fascia forward.
- Install the push-pin retainers (5) (three-sedan, three-wagon, one-charger) that secure the rear fascia assembly to the decklid sill.
- On sedan models, install the two bumper stops (1).
- Raise and support the vehicle.

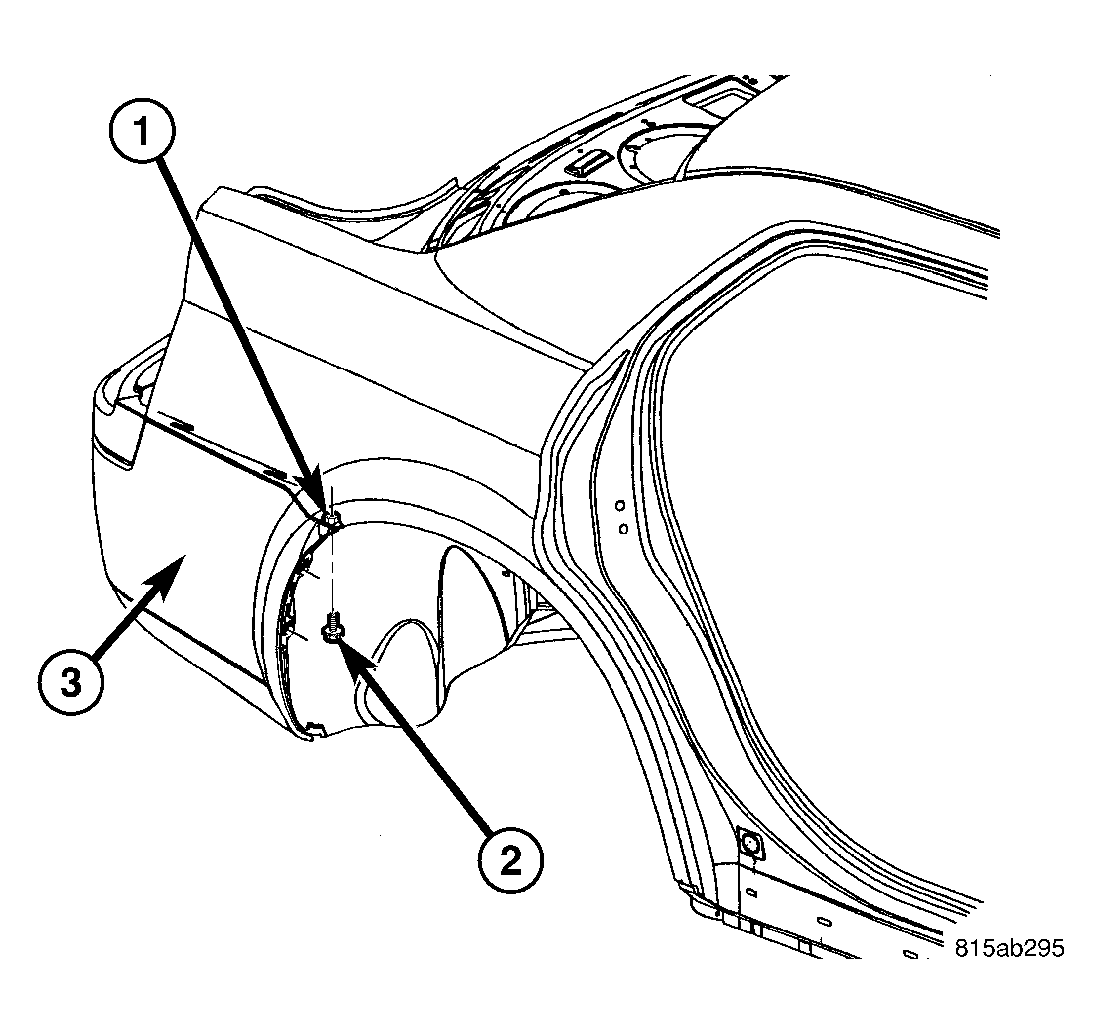

- Install the screw (2) that secures the rear fascia assembly to the nut insert (1) in each quarter panel. Tighten the screws securely.

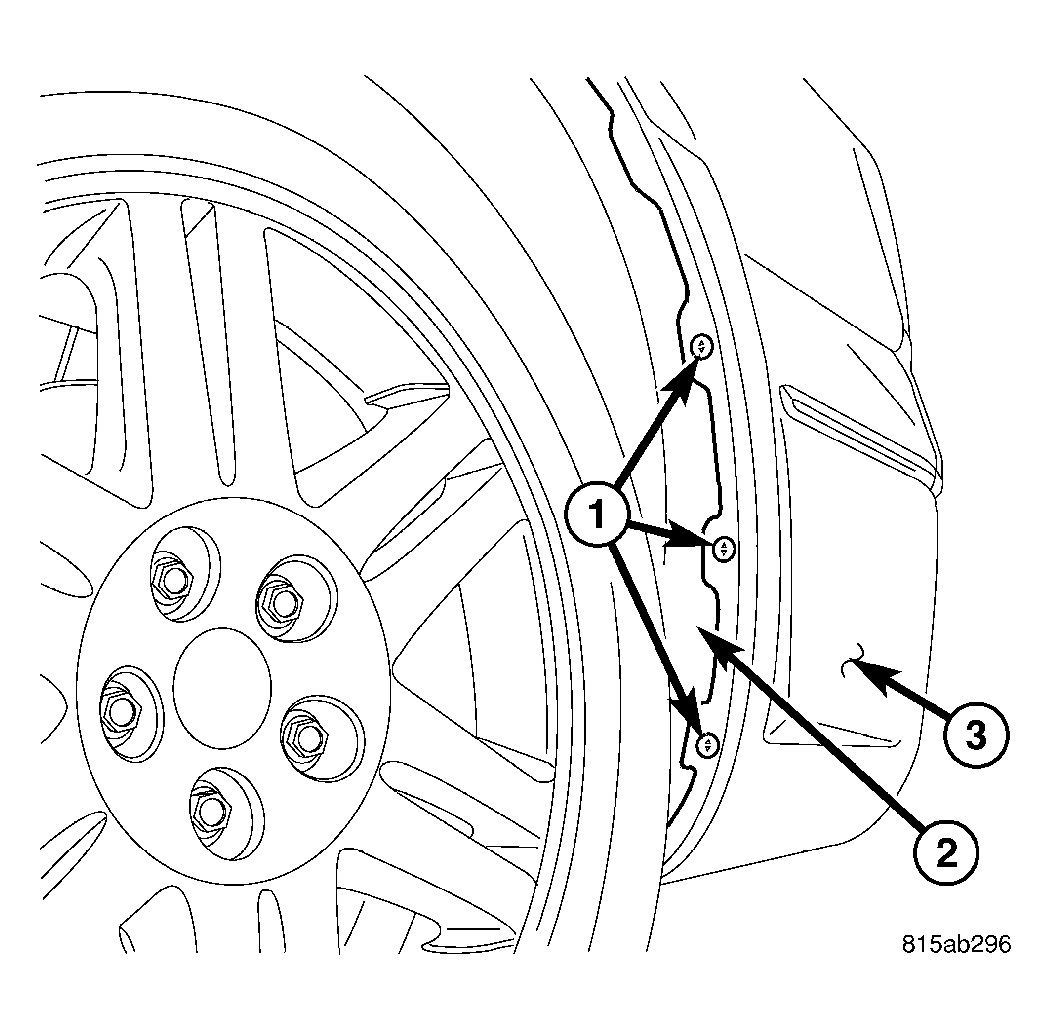

- Position each rear wheel house splash shield (2) to the rear fascia assembly (3) and install the push-pin retainers (1).
- Lower the vehicle.
