Section 36 (Frame & Bumpers): Fascia-Front: Removal: Charger
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

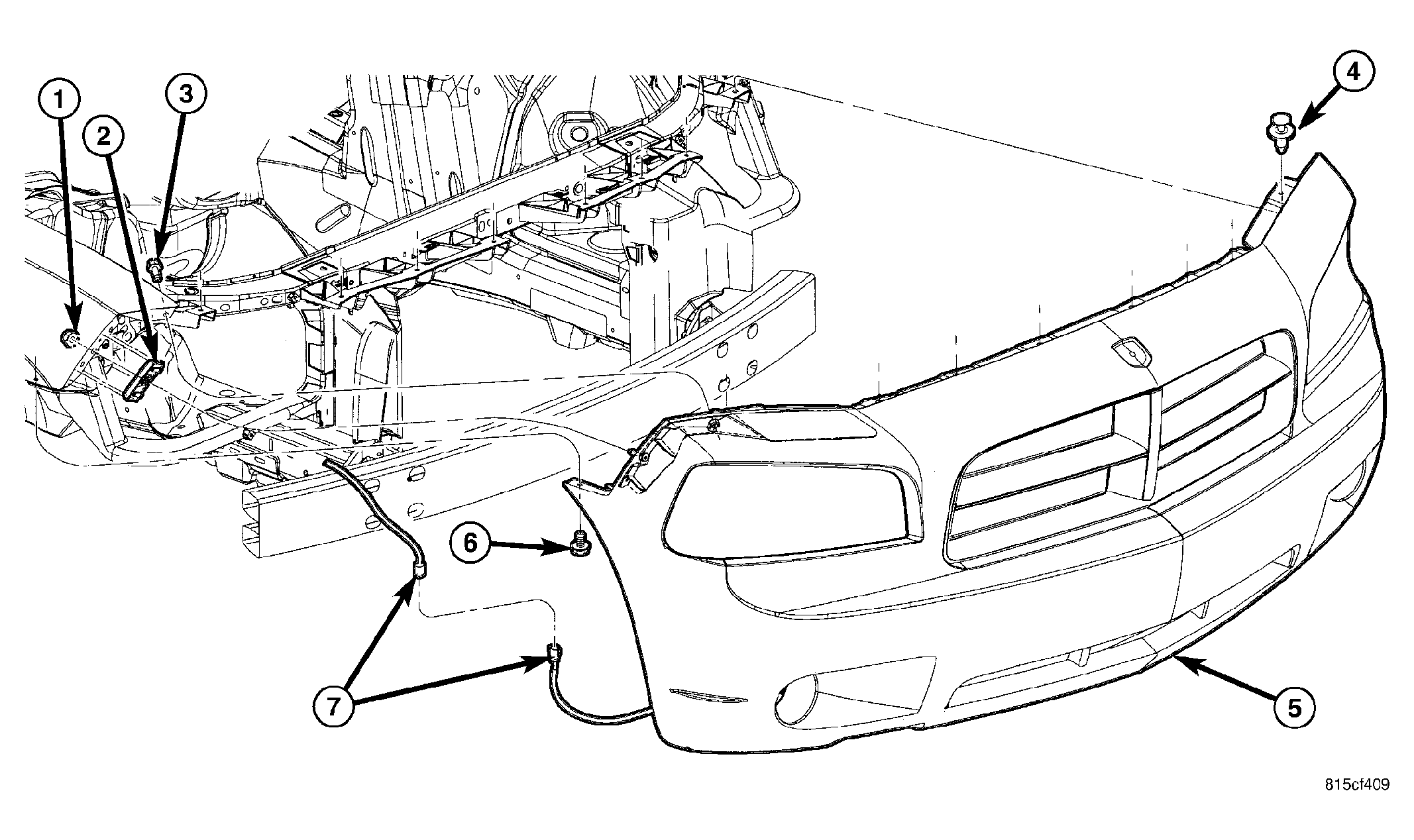

- Remove the screw (6) that secures the front fascia assembly (5) to the nut insert (1) in each front fender.
- Partially lower the vehicle and remove the push-pin retainers (4) (four-sedan, six-wagon, eight-Charger) that secure the front fascia assembly to the upper radiator support.
- Carefully pull the front fascia assembly forward to disengage the push-pin retainer (6) from the slot in each side the fascia and position the fascia to gain access to the fog lamp wire harness connectors (7), if equipped.

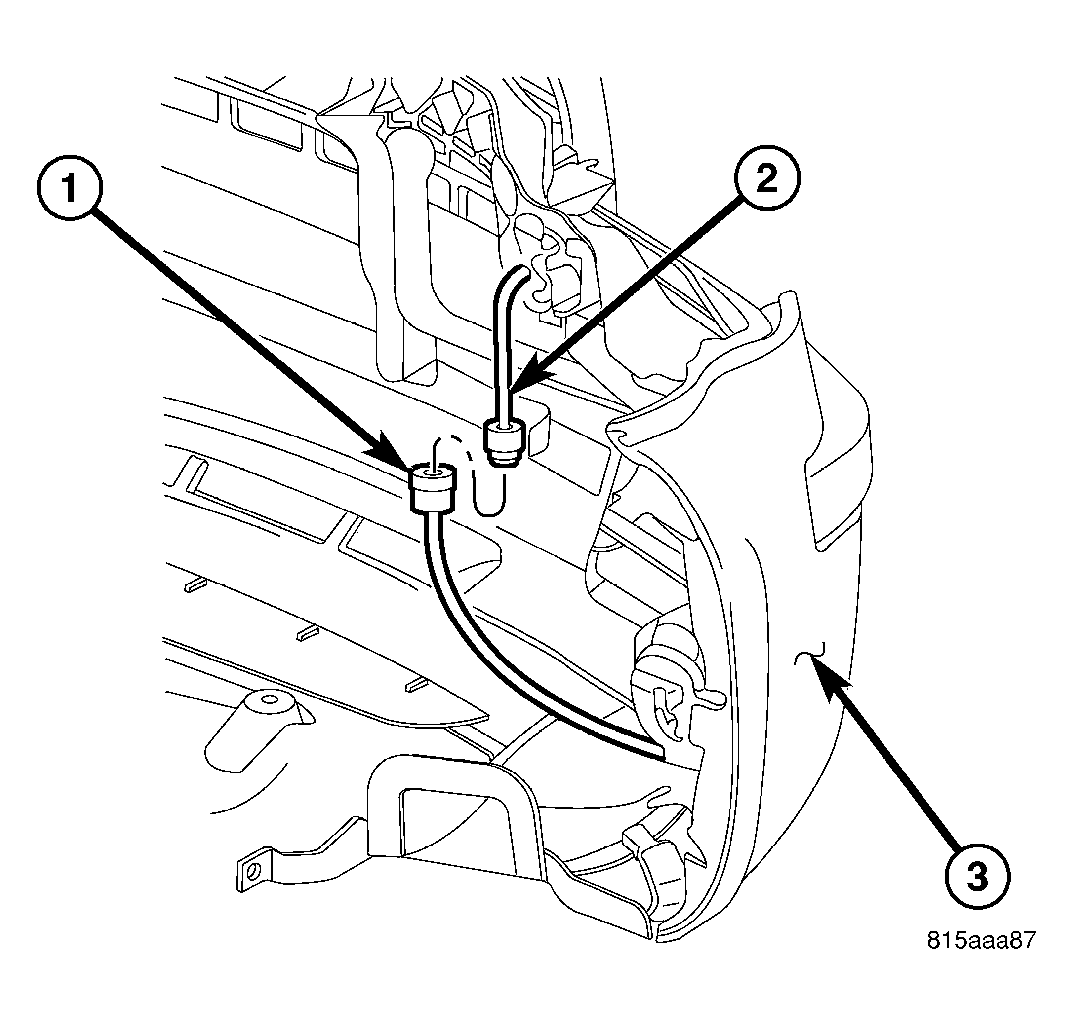

- If equipped, disconnect each fog lamp wire harness connector (1) from the headlamp wire harness (2) and remove the front fascia assembly (3) from the vehicle.
- If equipped and if required, remove the fog lamps from the front fascia assembly (Refer to ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/LAMP-FOG - REMOVAL) .
- If required on SRT8 models, remove the lower fascia from the front fascia assembly and discard the metal retaining clips.
- If required, remove and discard the nut insert (1) from each front fender and remove the push-pin retainer (2).
