Fog Lamp Unit: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

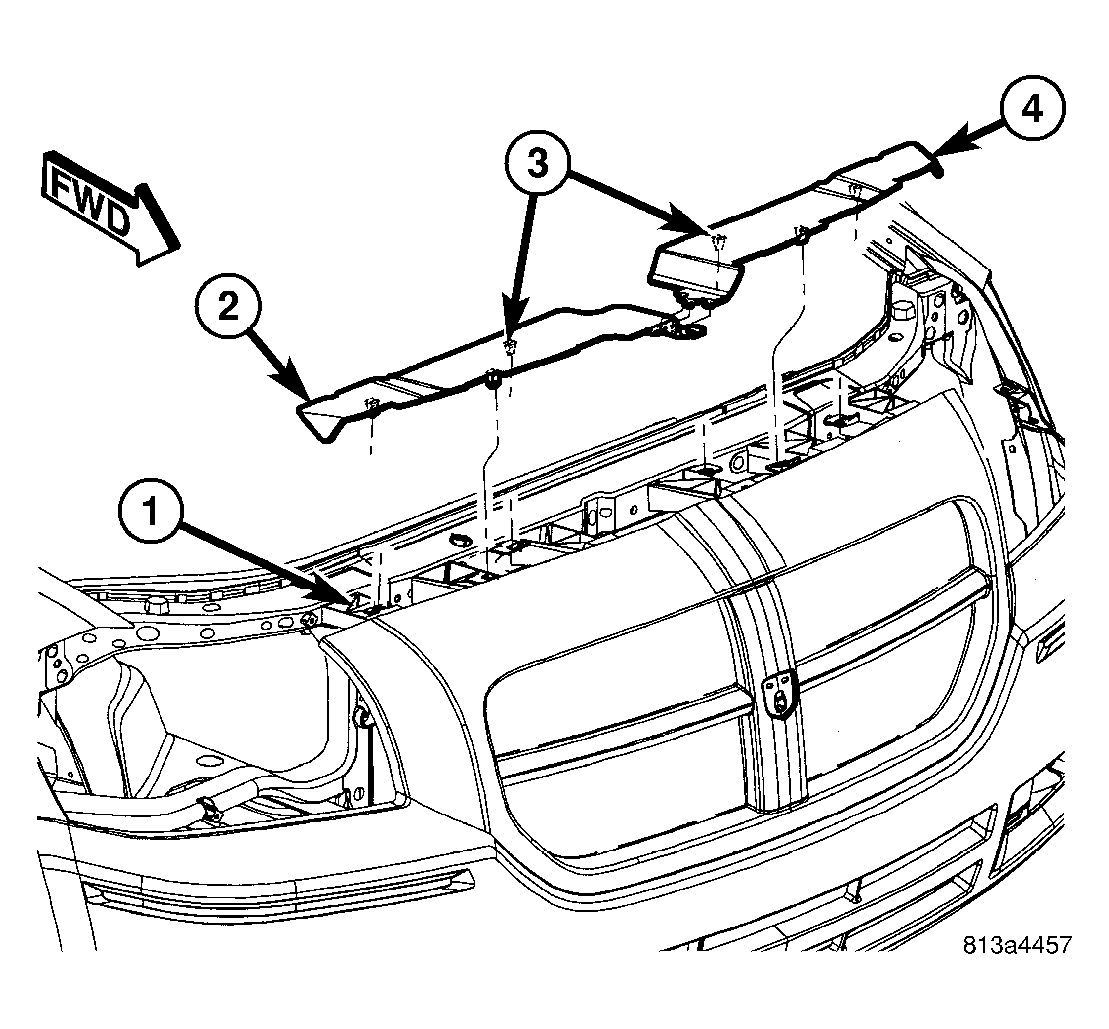

Fig 1: Upper Radiator Closeout Panel
GC0013451Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Open hood and remove the upper radiator closeout panel (2 and 4).
  3. Remove the six upper fascia retaining fasteners (Refer to FRAME & BUMPERS/BUMPERS/FRONT FASCIA - REMOVAL) .

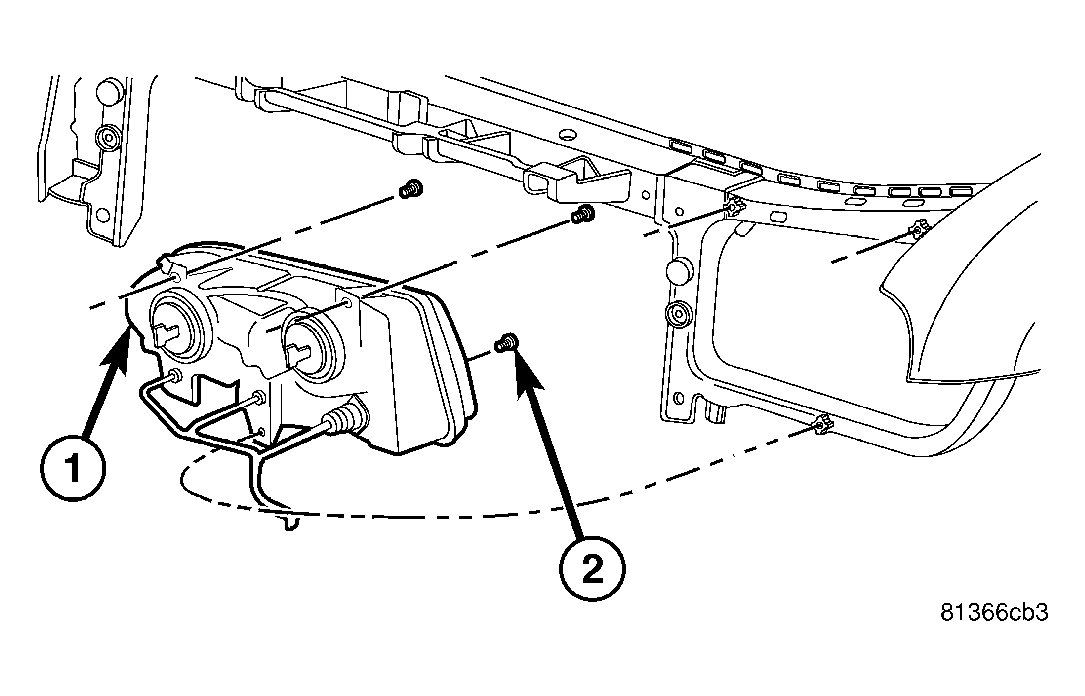

    Fig 2: Headlamp Attaching Screws
    GC0013429Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove the headlamp unit (Refer to ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/HEADLAMP UNIT - REMOVAL) .
    Fig 3: Fog Lamp Units
    GC0016094Courtesy of DAIMLERCHRYSLER CORP.
  5. From behind the bumper fascia, disconnect the harness connector.
  6. Remove two fog lamp unit mounting fasteners.
  7. Remove fog lamp unit (1).
