Section 36 (Frame & Bumpers): Bumper-Rear: Installation
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

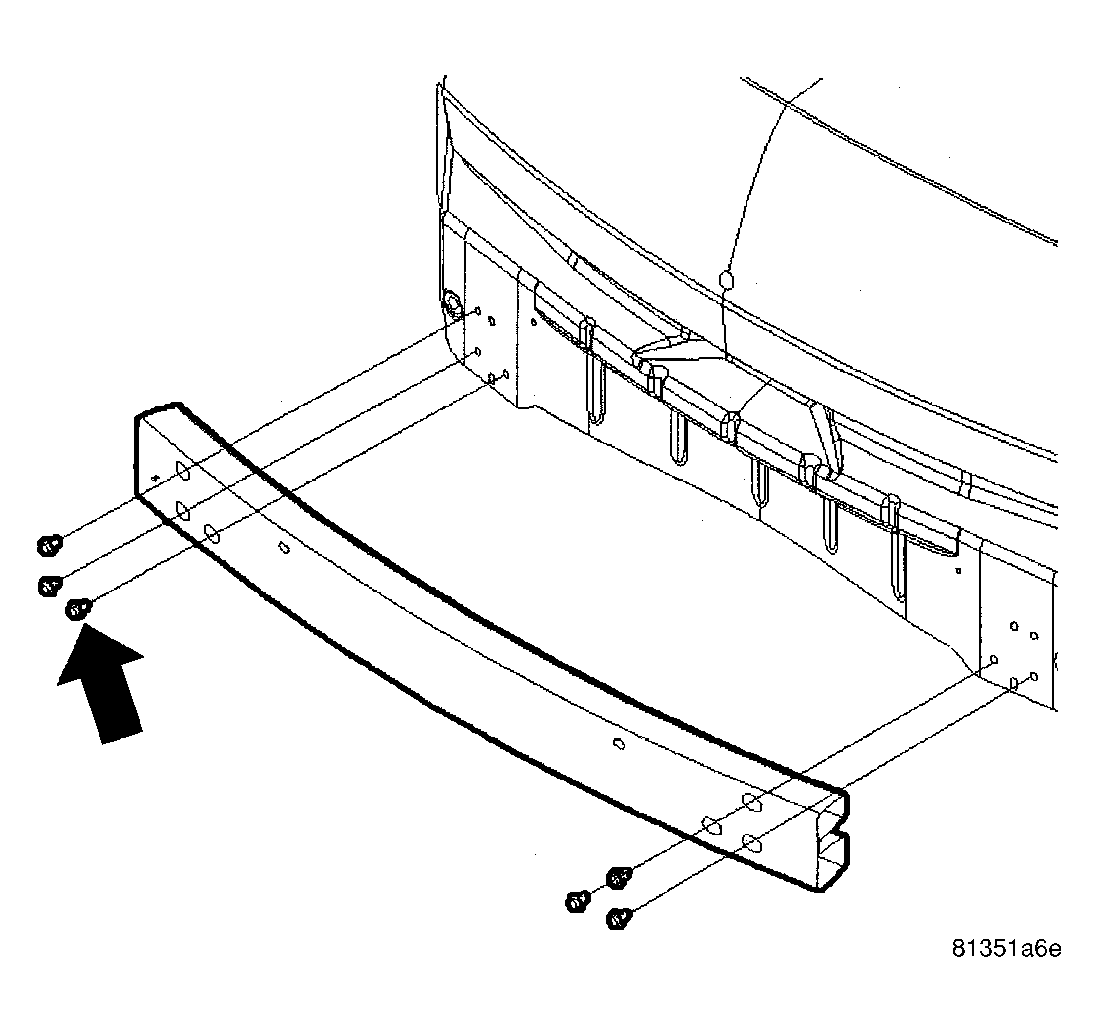

- Position the bumper.
- Install the nuts and washers and tighten to 28 N.m (21 ft. lbs.).
- Install the fascia assembly. (Refer to FRAME & BUMPERS/BUMPERS/FASCIA-REAR - INSTALLATION)
