Rear Seat Belt Buckle

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

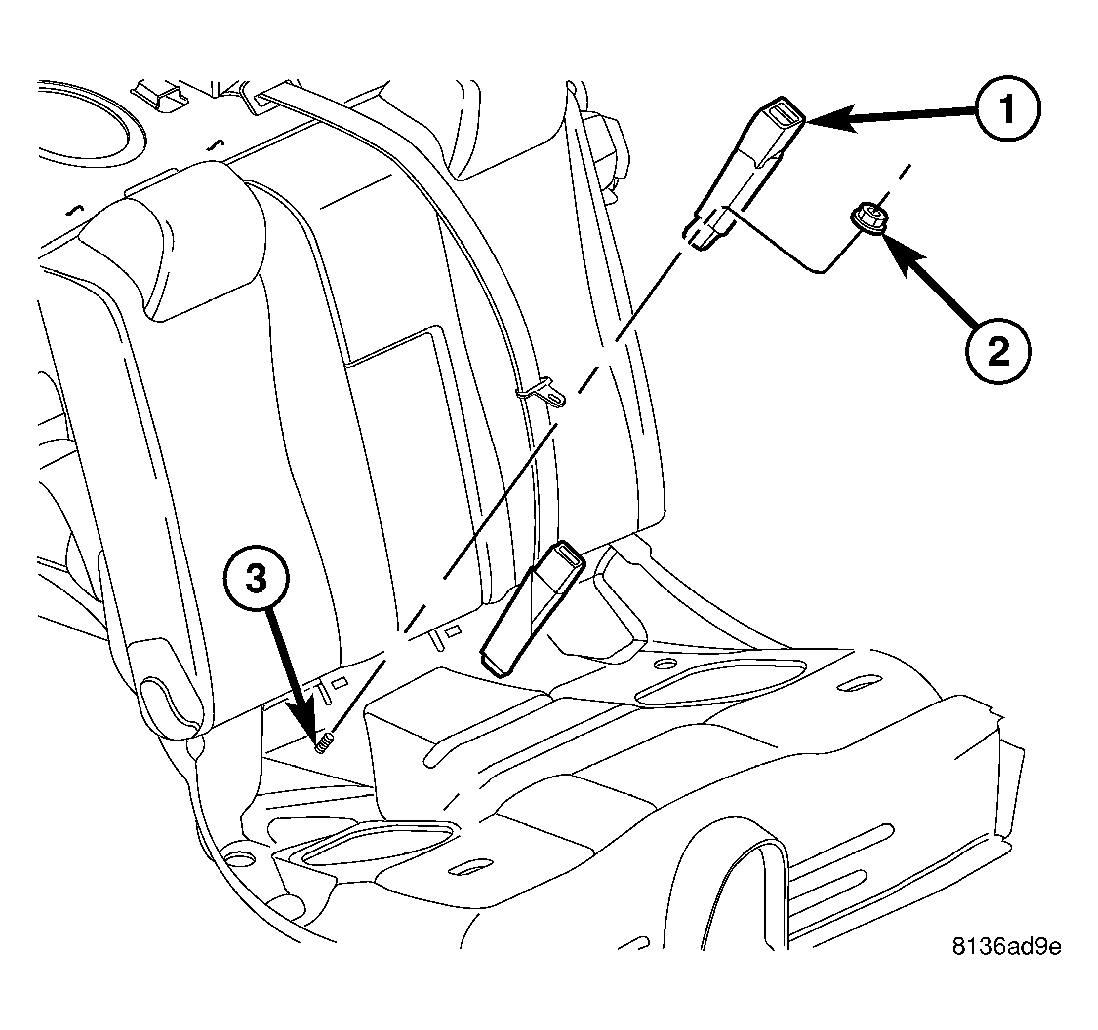

Fig 1: Rear Seat Belt Buckle
GC0016668Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the rear seat belt buckle onto mounting studs (3).
  2. Install retaining nut. Torque nut to 34 N.m (25 ft. lbs.).
  3. Install rear seat cushion (Refer to BODY/SEATS/SEAT CUSHION COVER - INSTALLATION) .
