Rear Center - Sedan

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

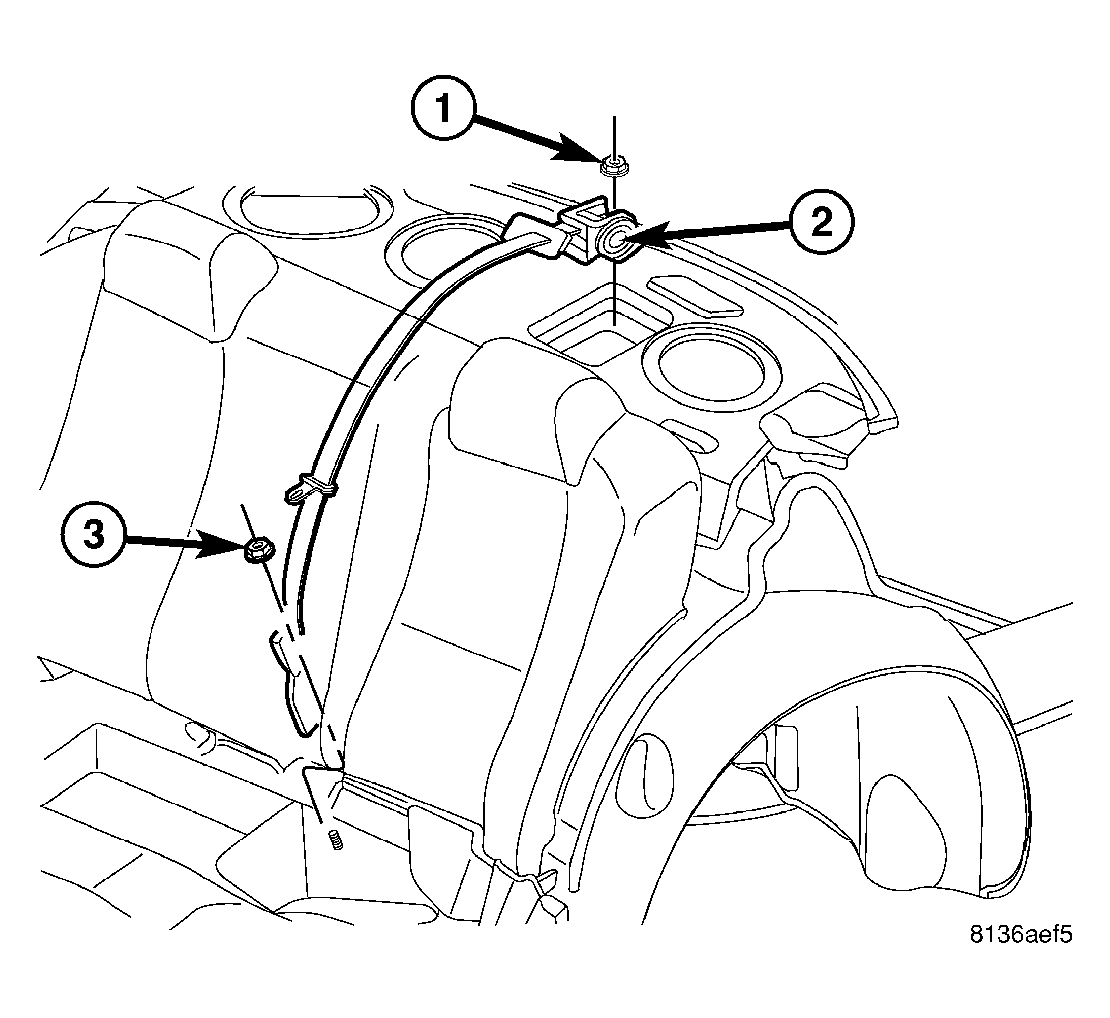

Fig 1: Rear Center Seat Belt
GC0016659Courtesy of DAIMLERCHRYSLER CORP.
  1. Place the rear center retractor (2) into position and install the one retaining nut (1). Torque nut to 34 N.m (25 ft. lbs.).
    Fig 2: Rear Shelf Trim Panel
    GC0016093Courtesy of DAIMLERCHRYSLER CORP.
  2. Install the rear shelf trim panel (Refer to BODY/INTERIOR/REAR SHELF TRIM PANEL - INSTALLATION) .
    Fig 3: Rear Center Seat Belt
    GC0016659Courtesy of DAIMLERCHRYSLER CORP.
  3. Install the one nut (3) to the seat belt lower anchor. Torque nut to 34 N.m (25 ft. lbs.).
  4. Install the rear seat cushion (Refer to BODY/SEATS/SEAT CUSHION COVER - INSTALLATION) .
