NONDEPLOYED Passenger Airbag

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Passenger Airbag

Courtesy of DAIMLERCHRYSLER CORP.

Maneuver the passenger airbag up into the instrument panel in a way to clear any obstacles that may impede the installation of the airbag.

Fig 2: Passenger Airbag Location
Courtesy of DAIMLERCHRYSLER CORP.
Place the passenger into the cavity of the passenger airbag door.

Fig 3: Passenger Airbag Fasteners
Courtesy of DAIMLERCHRYSLER CORP.
Install the two passenger airbag mounting bolts (2) to the crusader beam. Torque bolts to 11.6 N.m (103 in. lbs.).
Connect the passenger airbag electrical connector (3).

Fig 4: Inboard Mounting Screws
Courtesy of DAIMLERCHRYSLER CORP.
Install the two inboard mounting screws (2) to the passenger airbag just below the distribution duct (1) and to the left of the distribution housing. Torque screws to 2.8 N.m (25 in. lbs.).

Fig 5: Outboard Mounting Screws
Courtesy of DAIMLERCHRYSLER CORP.
Install the two outboard mounting screws (1) to the passenger airbag just below the distribution duct. Torque screws to 2.8 N.m (25 in. lbs.).

Fig 6: Bin-Glove Box R and I
Courtesy of DAIMLERCHRYSLER CORP.
Install the glove box assembly (Refer to BODY/INSTRUMENT PANEL/GLOVE BOX - INSTALLATION) .

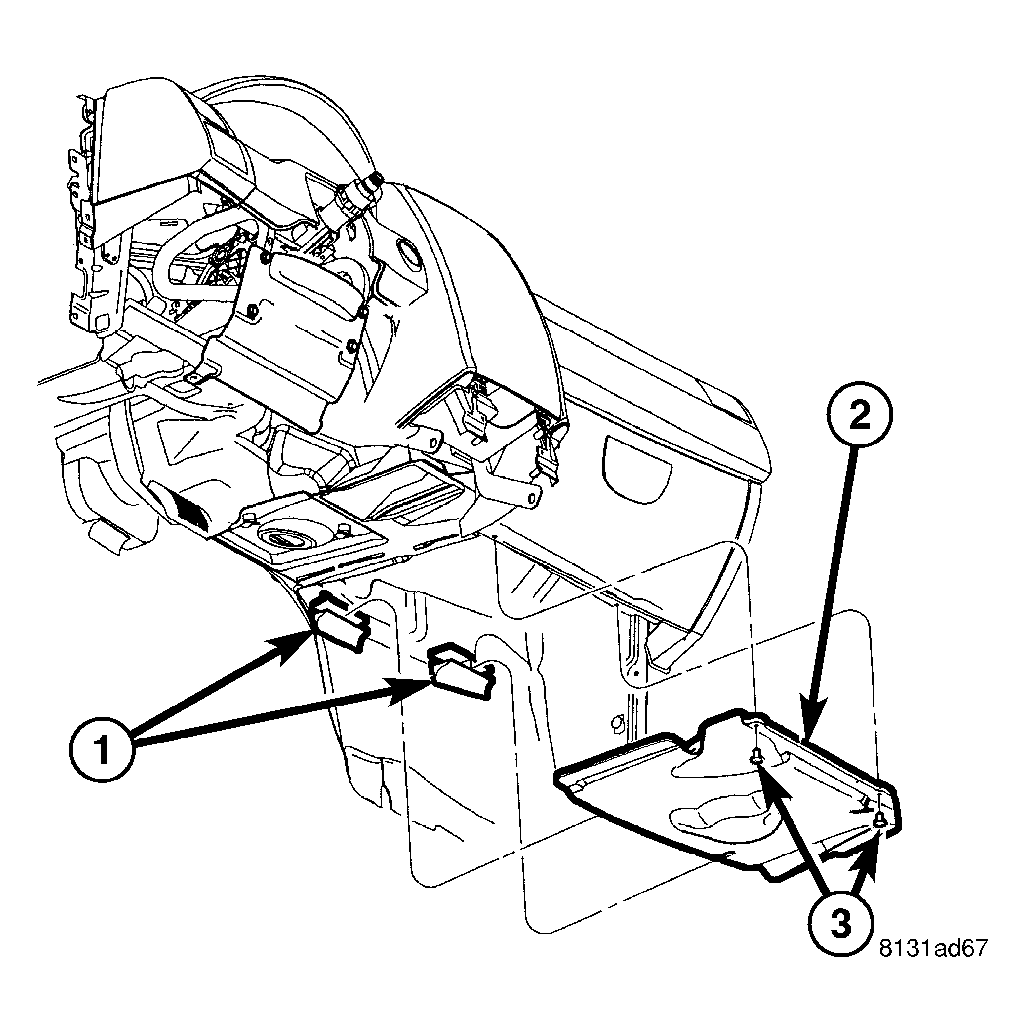

Fig 7: Right I/P Closeout Panel
Courtesy of DAIMLERCHRYSLER CORP.
Install the right side silencer pad (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL SILENCER - INSTALLATION) .

WARNING: Do not connect the battery negative cable (Refer to AIRBAG SYSTEM ). Personal injury or death may result if the system test is not performed first.
