Sunroof - Service Information: Sunshade: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

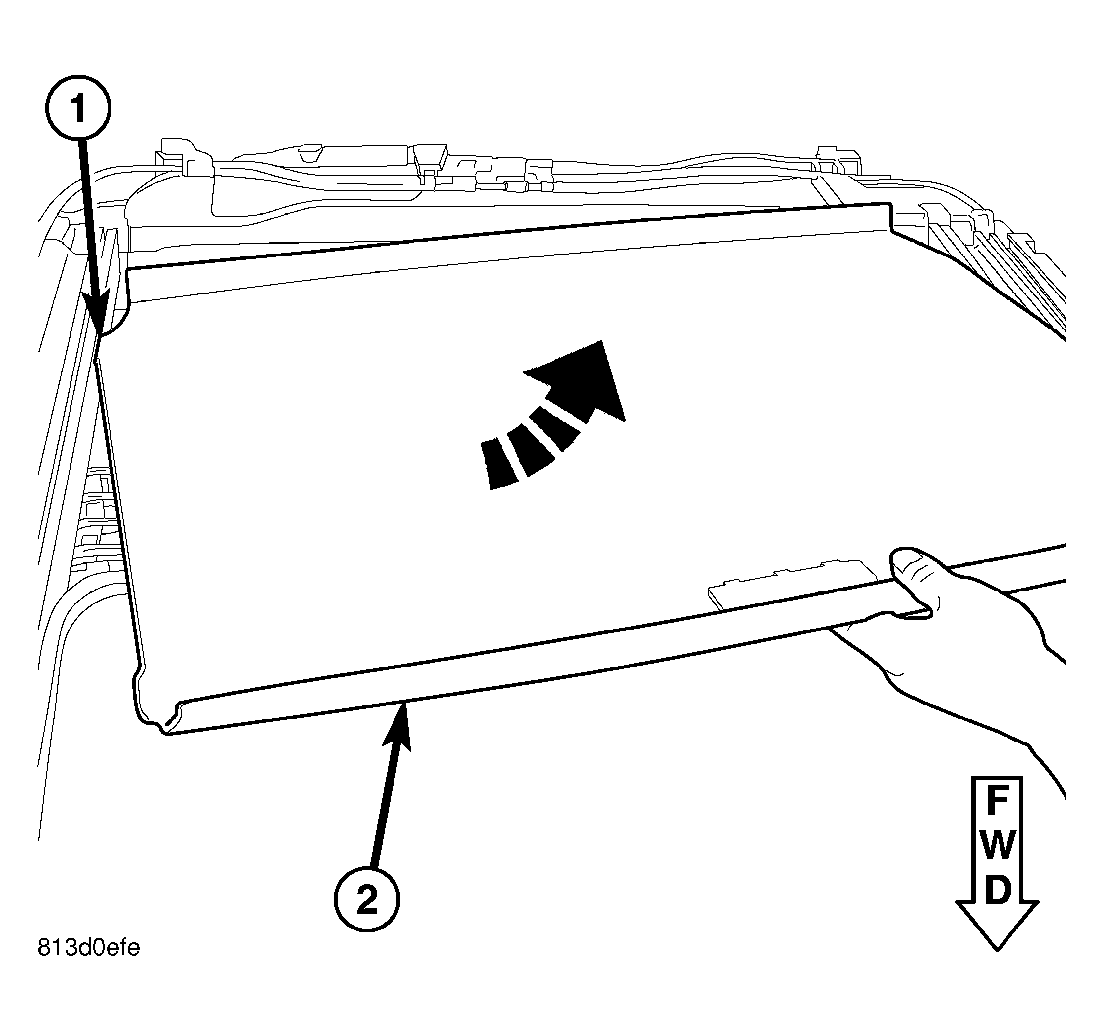

Fig 1: Removal 1

Courtesy of DAIMLERCHRYSLER CORP.

Remove the drain channel. (Refer to BODY/SUNROOF/CHANNEL-DRAIN - REMOVAL)
Push up the front center of the sunshade (1) to pop out the front two feet.

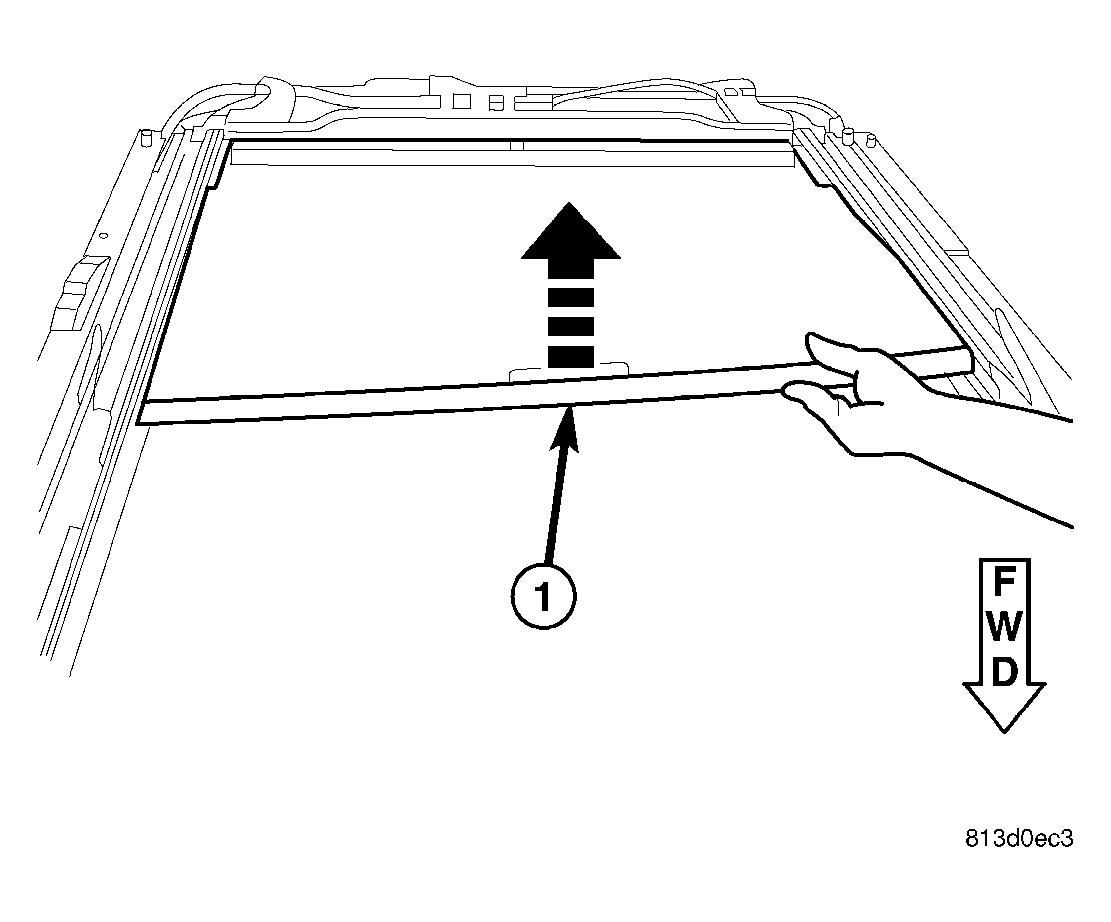

Fig 2: Removal 2
Courtesy of DAIMLERCHRYSLER CORP.
Rotate the sunshade (2) so that the other feet (1) are removed from the guide track.
