Sunroof - Service Information: Channel-Drain: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Channel Arm

Courtesy of DAIMLERCHRYSLER CORP.

Remove glass panel (2). (Refer to BODY/SUNROOF/GLASS PANEL - REMOVAL)
Separate the drain channel arms (2) from the guide mechanisms (1) one at a time.
CAUTION: Do not pry the channel arms apart at the same time or you could break the drain channel.

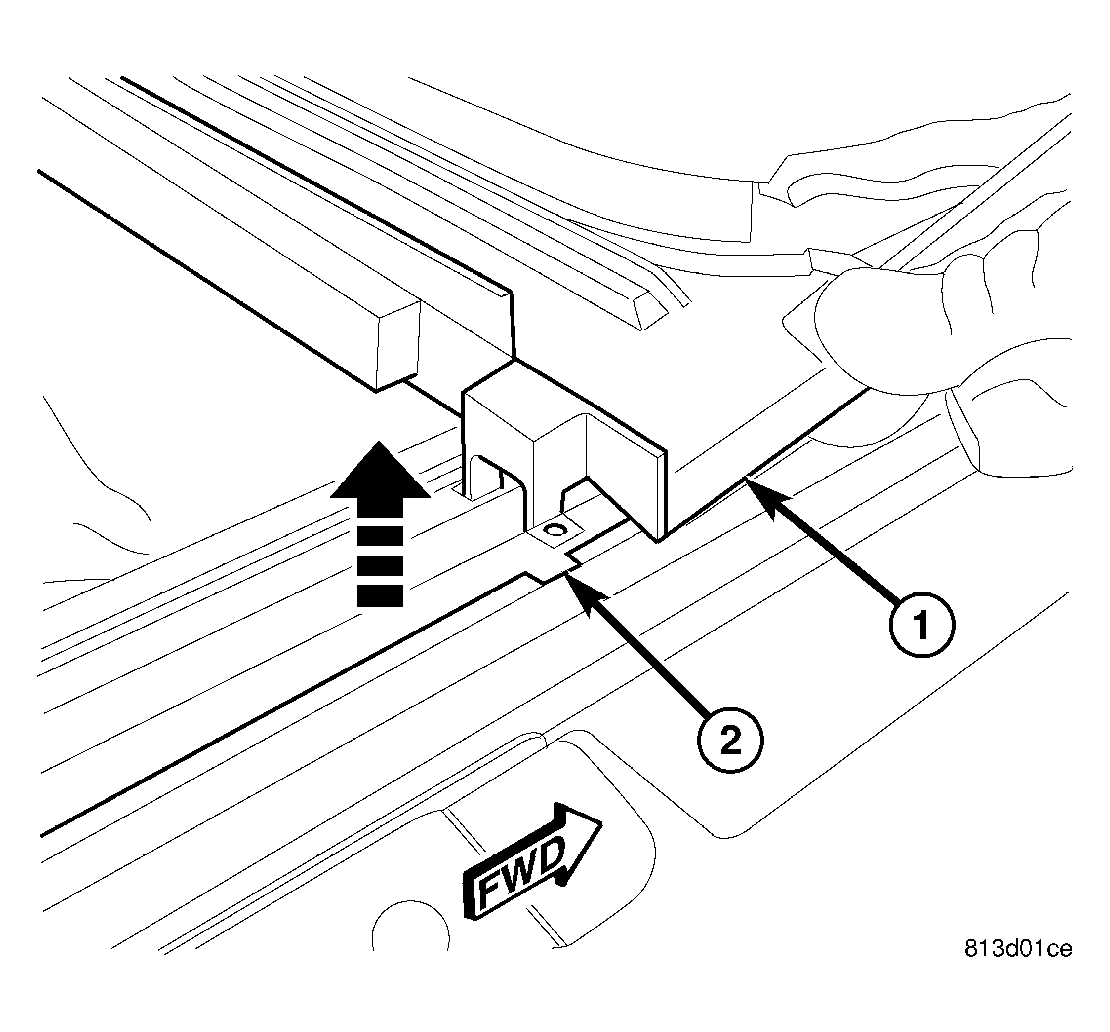

Fig 2: Channel Removal
Courtesy of DAIMLERCHRYSLER CORP.
Carefully slide the drain channel (1) forward to the notches (2) in the frame and remove from the vehicle.
