Section 23 (Body - Interior & Exterior): Seats: Support-Lumbar: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Lumbar Screen 1

Courtesy of DAIMLERCHRYSLER CORP.

Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to BODY/SEATS - WARNING)
Remove the seat back cushion/cover. (Refer to BODY/SEATS/SEAT BACK CUSHION / COVER - FRONT - REMOVAL)

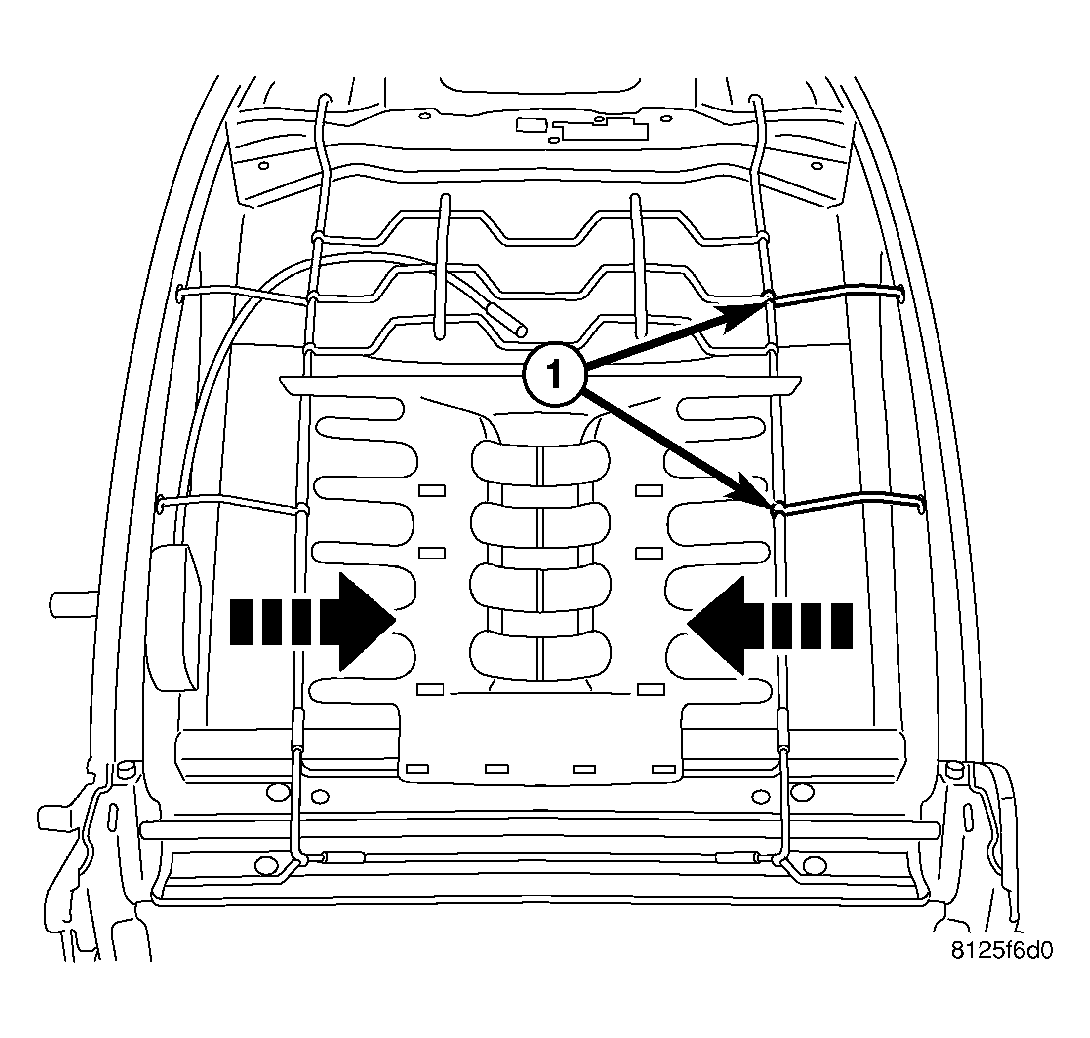

Release the lumbar mat side wires (1) by pulling out on the wire supports and then pulling them in.

Fig 2: Lumbar Screen 2
Courtesy of DAIMLERCHRYSLER CORP.

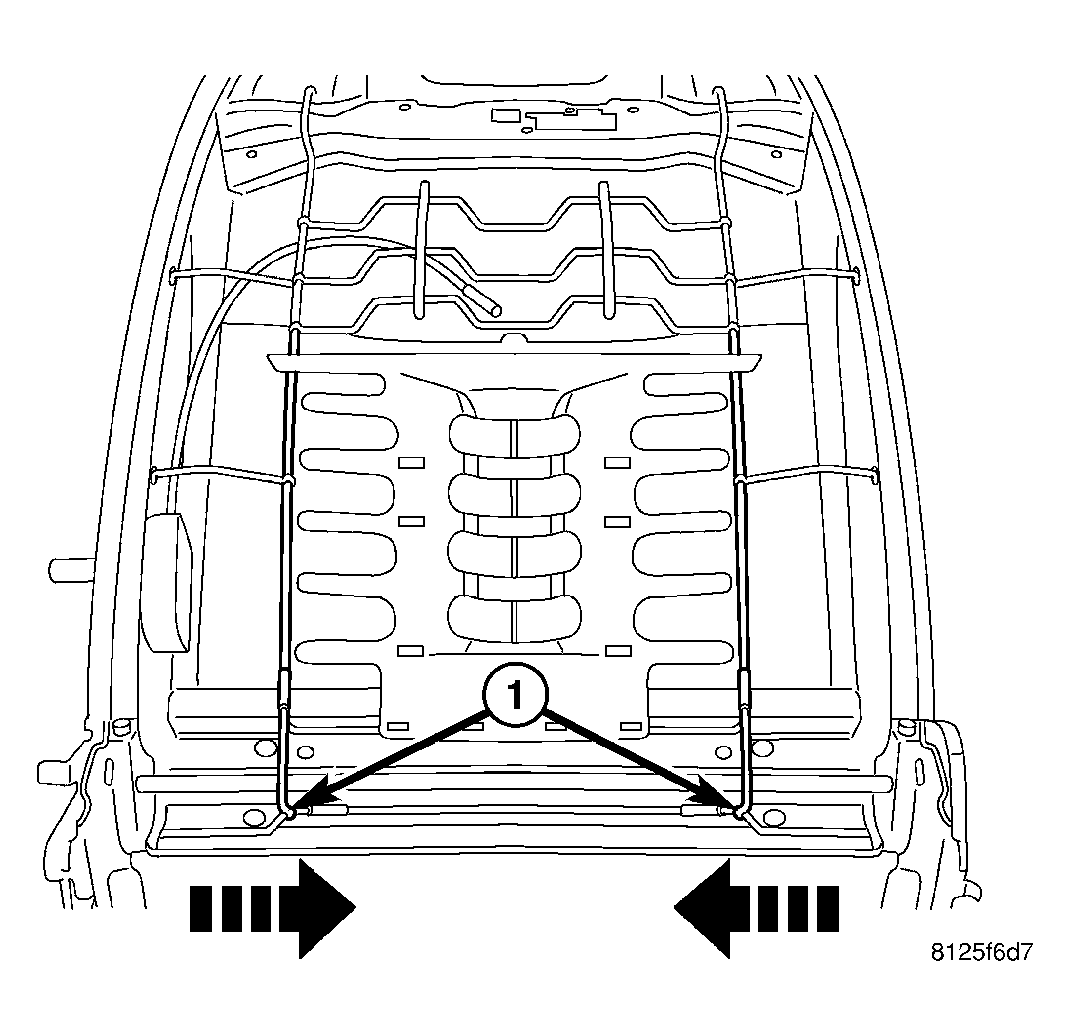

Squeeze the lower support wires (1) in and release the lower wires.

Fig 3: Lumbar Screen 3
Courtesy of DAIMLERCHRYSLER CORP.

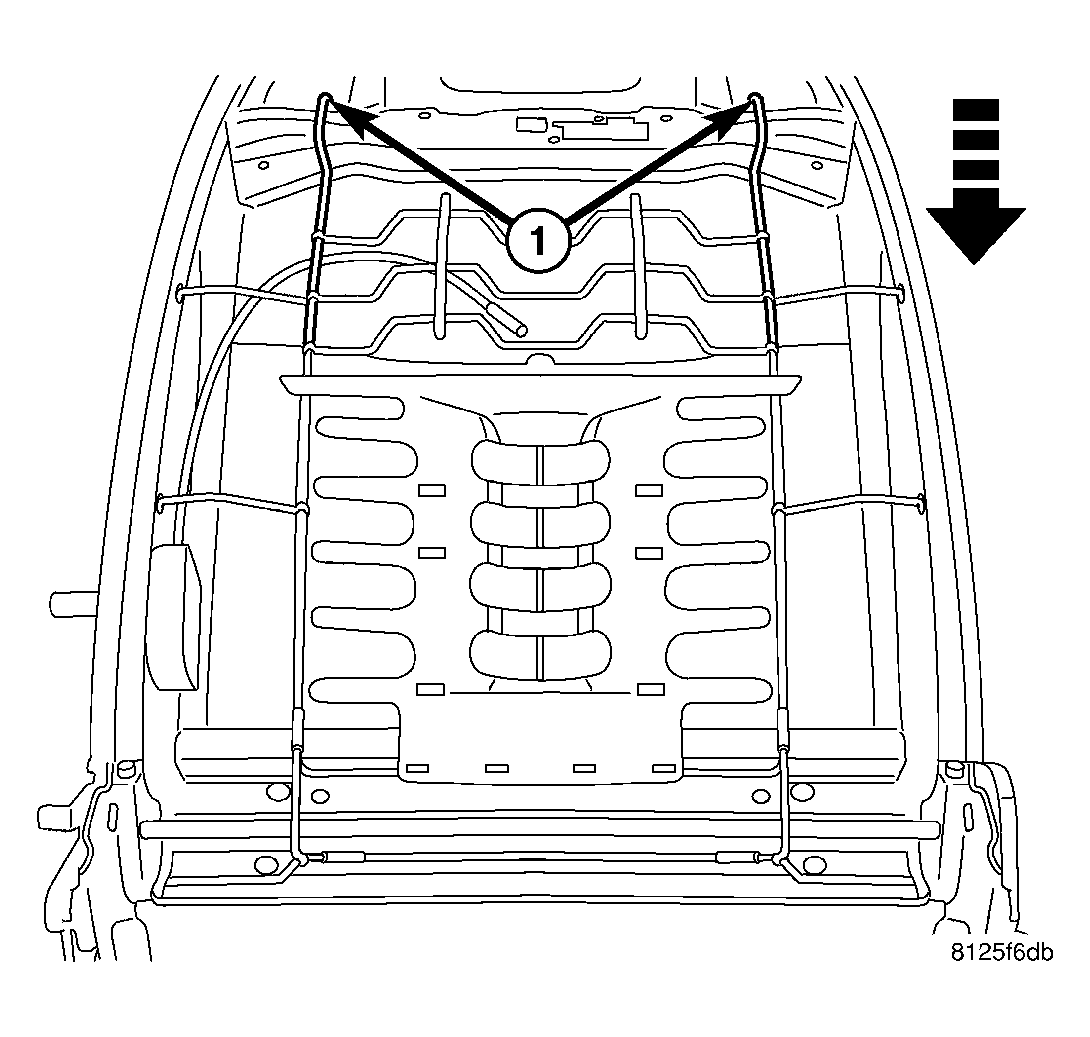

Pull the upper support wires (1) down and release the lumbar mat from the seat back frame.

Fig 4: Lumbar Actuator
Courtesy of DAIMLERCHRYSLER CORP.
Remove the rivet (1) and remove the lumbar mechanism (2).
