Cushion/Cover-Seat Back - Second Row: Removal: Notes

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

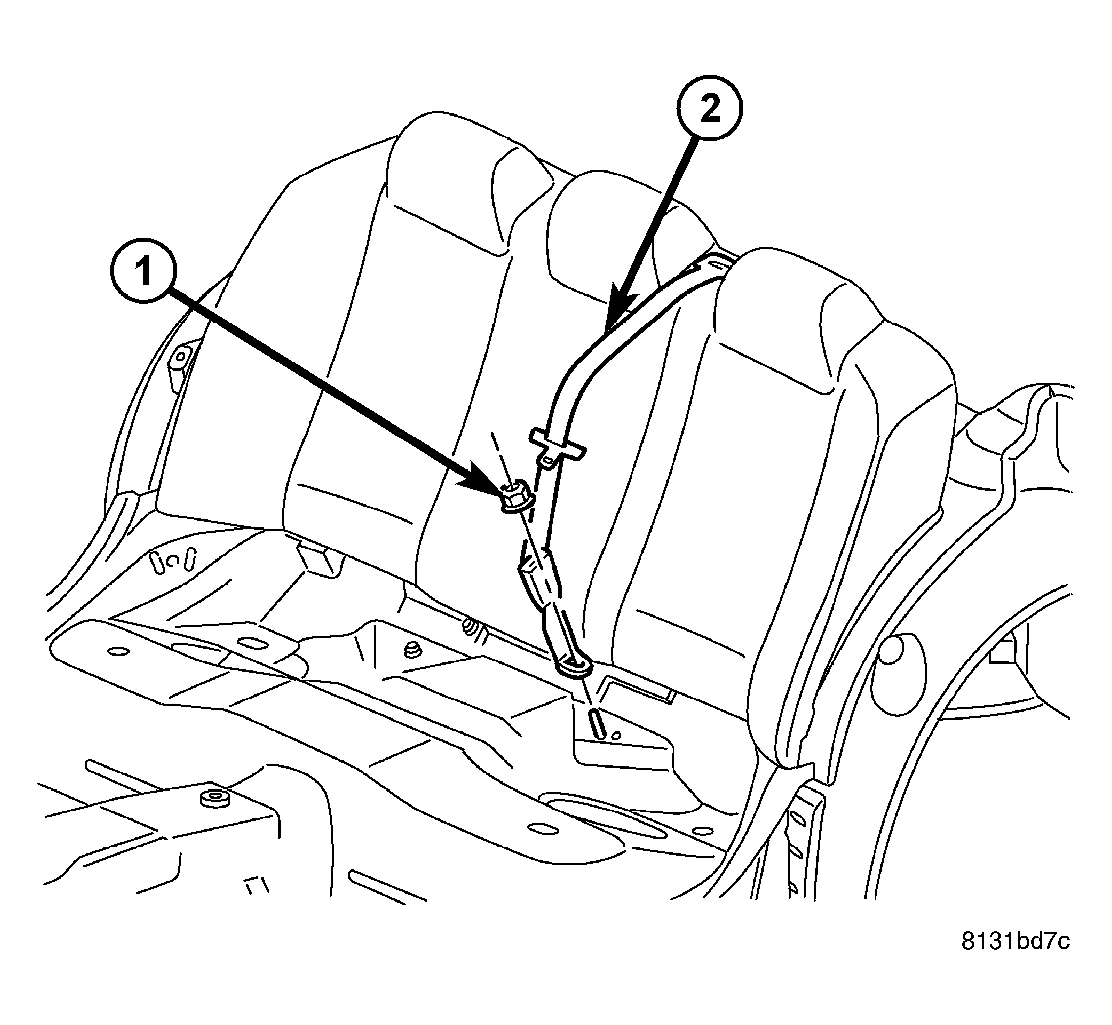

Fig 1: Rear Center Seat Belt Anchor 49
GC0013580Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the seat cushion. (Refer to BODY/SEATS/SEAT CUSHION COVER - REMOVAL)
  2. Remove the nut and disconnect the seat belt anchor.
