Rear Door: Glass: Removal
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the trim panel from the inside of the rear door. (Refer to BODY/DOOR - REAR/TRIM PANEL - REMOVAL) .
- Remove the inner belt weatherstrip from the rear door.
- Remove the watershield from the inside of the rear door. (Refer to BODY/DOOR - REAR/WATERSHIELD - REMOVAL) .
- Remove the glass channel and bracket from the inside of the rear door. (Refer to BODY/DOOR - REAR/GLASS RUN CHANNEL - REMOVAL) .

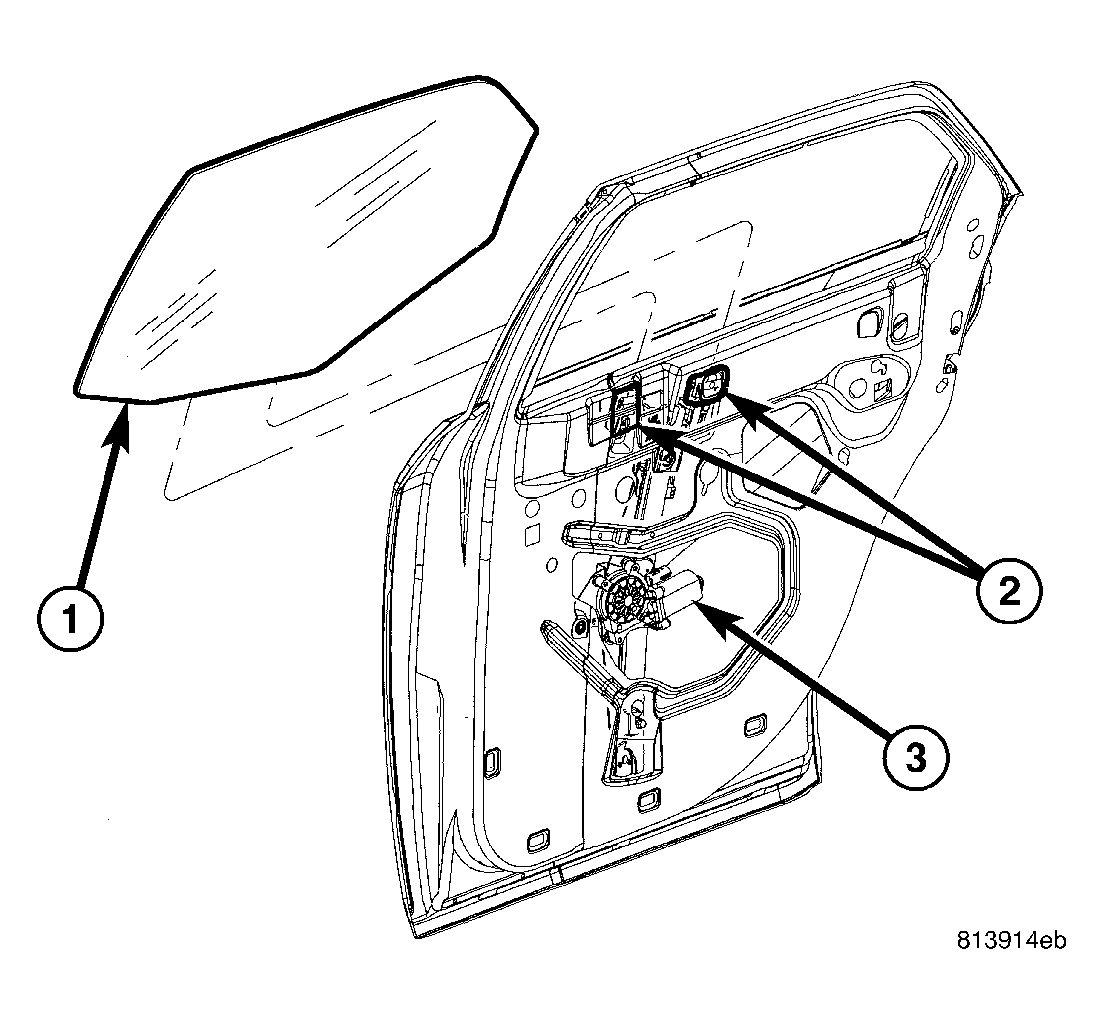

- Using the regulator, adjust the rear door glass (1) position up or down as required for access to the two window regulator glass clamps (2).
- Loosen the screw (2) in each of the glass clamps far enough to release the glass.
- From the outside of the rear door, lift the glass (1) upward far enough to disengage it from the two glass clamps (2).
- Lift the glass upward and out from the top of the door shell to unload the glass from the door.
