Section 23 (Body - Interior & Exterior): Exterior: Rack-Luggage: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

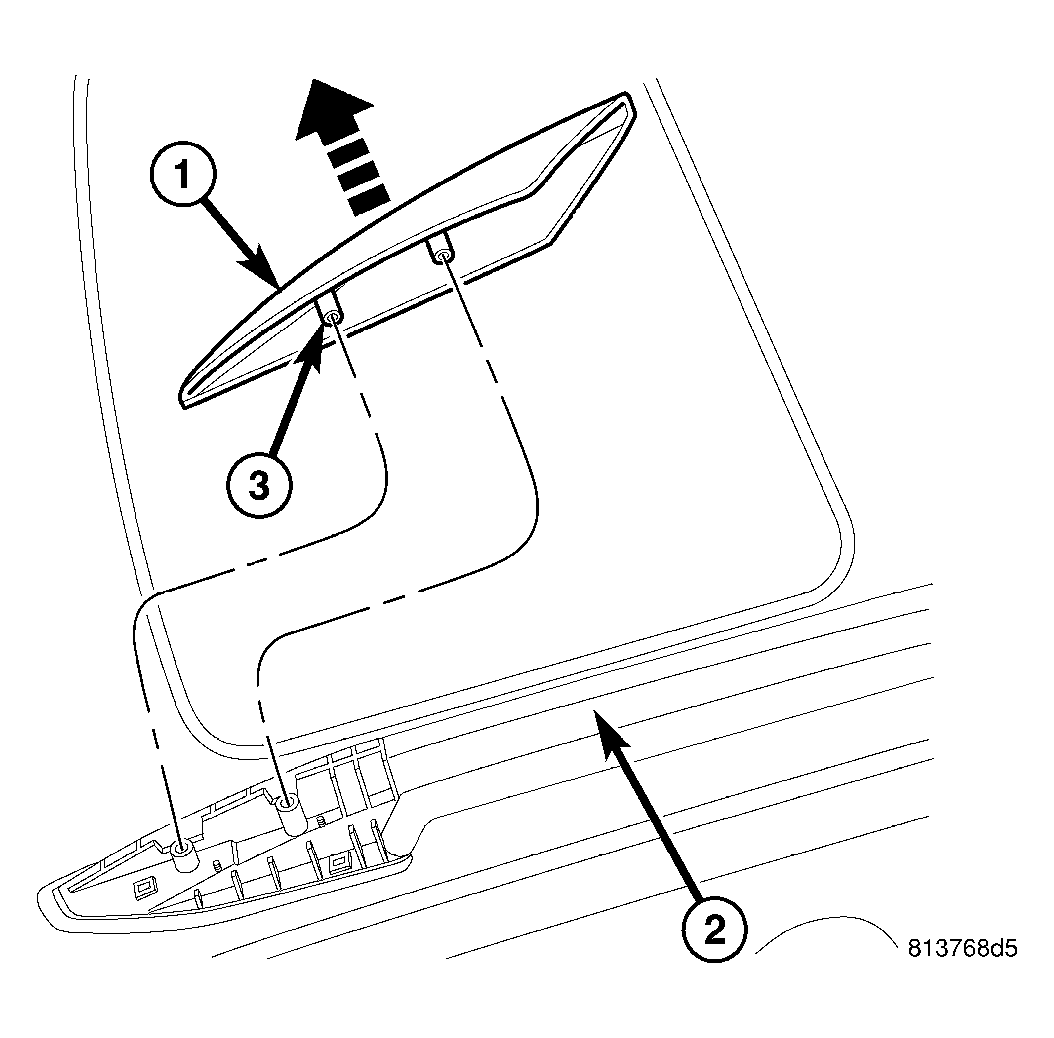

Fig 1: End Cap-Remove

Courtesy of DAIMLERCHRYSLER CORP.

If equipped, remove the luggage rack crossbars (Refer to BODY/EXTERIOR/LUGGAGE RACK CROSSBAR - REMOVAL) .
Remove the end caps (1) from the luggage rack bars (2) by gently prying up on the end cap to disengage the two integral retainers (3).

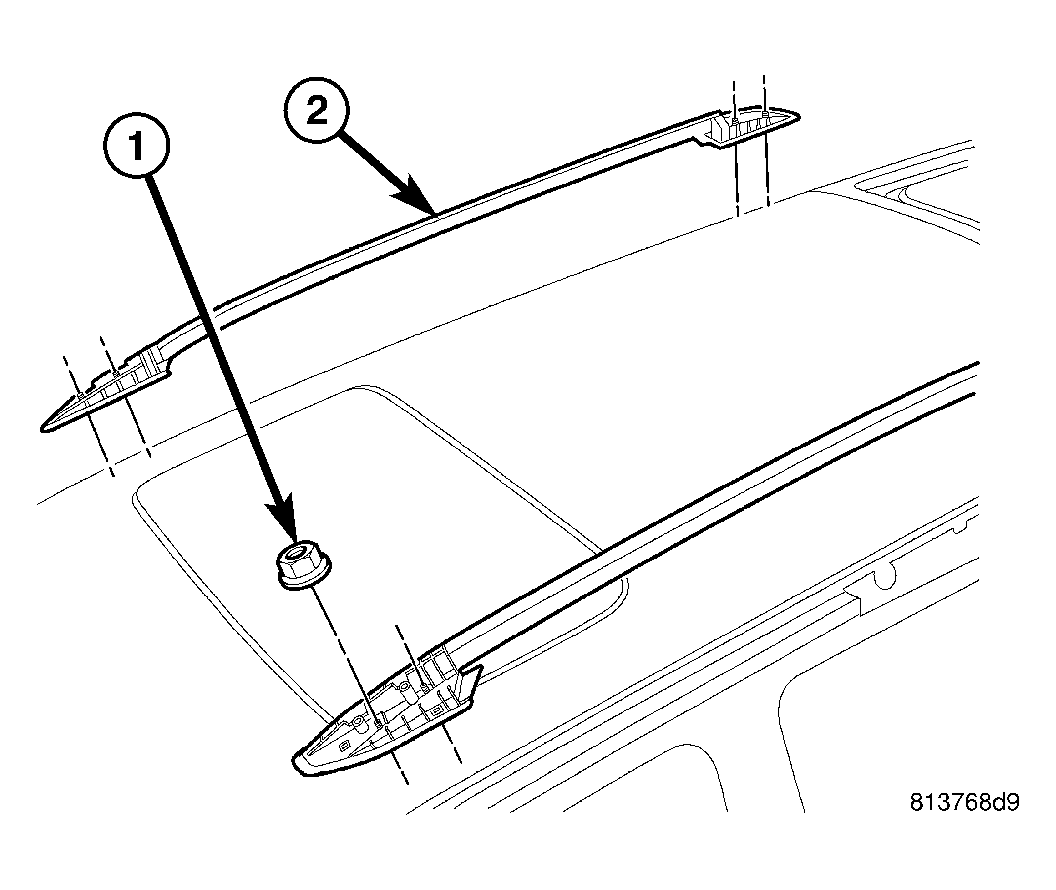

Fig 2: Side Rails
Courtesy of DAIMLERCHRYSLER CORP.
Remove the two nuts (1) that secure each end of the luggage rack crossbars (2) to the top of the vehicle.
Remove the luggage rack crossbars from the top of the vehicle.
