Rack-Luggage - Crossbar: Removal
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

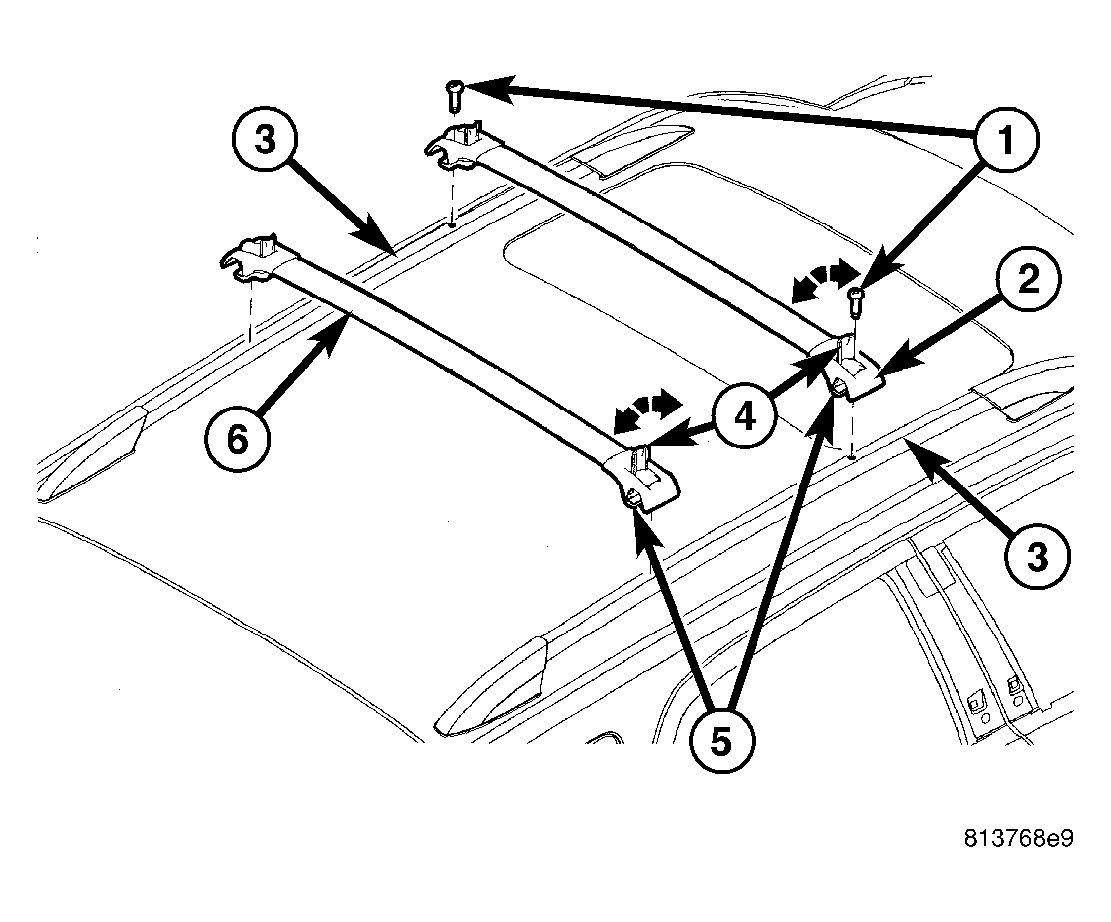

- Remove the two screws (1) that secure the front luggage rack crossbar (2) to the luggage rack bars (3).
- Lift the handle on the four luggage rack crossbar levers (4) and then turn the levers counter - clockwise to loosen lower clamps (5).
- Turn the lower clamps towards the center of the vehicle.
- Remove the front luggage rack crossbar and the rear luggage rack crossbar (6) from the luggage rack bars.
